Art. 422F

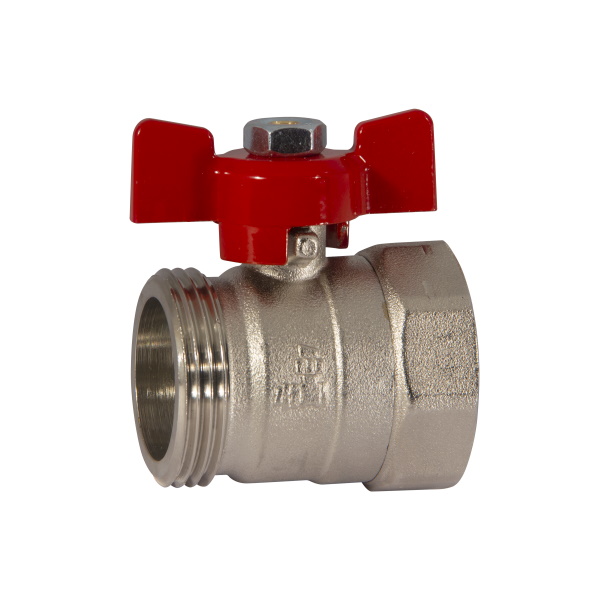

MF ball valve PN 25 with butterfly handle

Print datasheet

Items

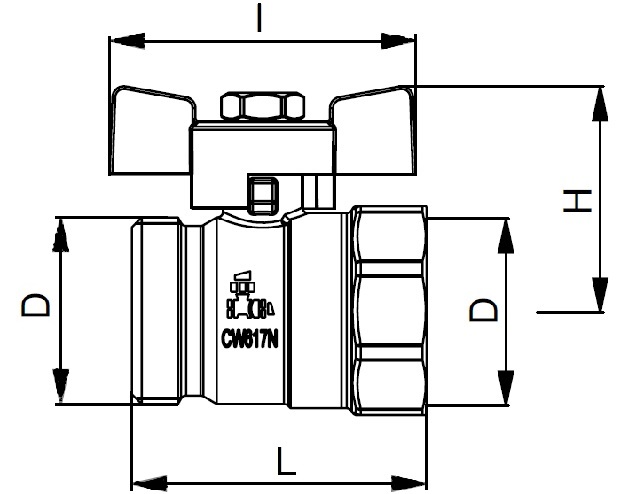

Code Size (D) Smooth Handle H I L Pack
422F00060F 1" Aluminum 40 54 51,5 2
422F00060E 1" Aluminum 40 54 51,5 2
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Standard
Working temperature: 3-110°C
Max working pressure: 25 bar
Bodyin forged brass CW617N
Thread: ISO228

🍪
