Straight "H" double valve for panels radiators

  • Straight H double valve for panels radiators
  • Scheda tecnica - Straight H double valve for panels radiators
  1. Straight H double valve for panels radiators
  2. Scheda tecnica - Straight H double valve for panels radiators
Art. 303

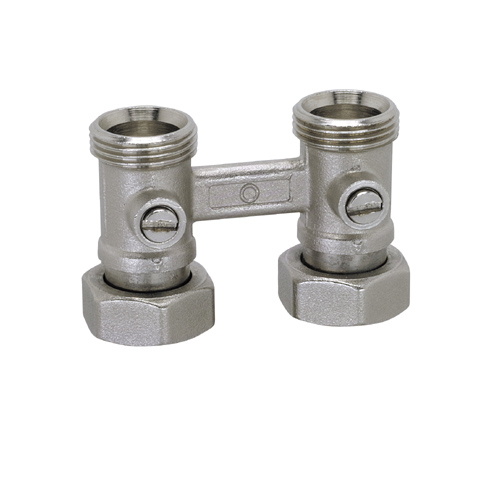

Straight "H" double valve for panels radiators

Print datasheet

Items

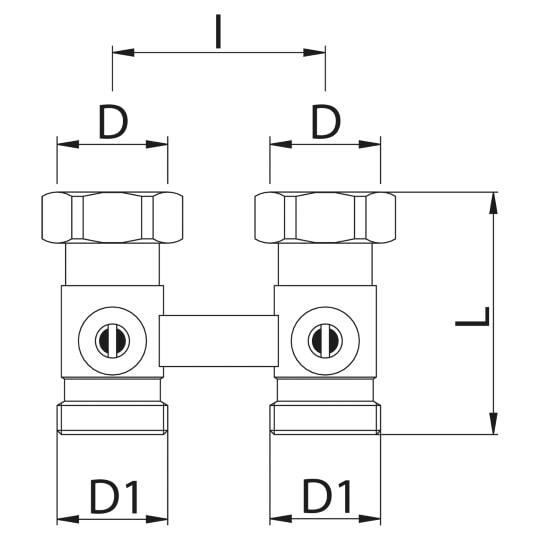

Code Size (D) Smooth D1 I L Pack
3030000500 3/4" 3/4" 50 48 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Thermostatic head attachment: M30x1,5
Suitable for fittings for copper, PEX or multilayer piping
Available with thermostatic head: art.400T
Allowed fluids: water (Glycole max percentage: 50%)
The mono pipe valves with four outlets are supplied complete with brass supply feeler

🍪
