Solder ball valve PN25 with lever handle

  • Solder ball valve PN25 with lever handle
  • Scheda tecnica - Solder ball valve PN25 with lever handle
  1. Solder ball valve PN25 with lever handle
  2. Scheda tecnica - Solder ball valve PN25 with lever handle
Art. 437B

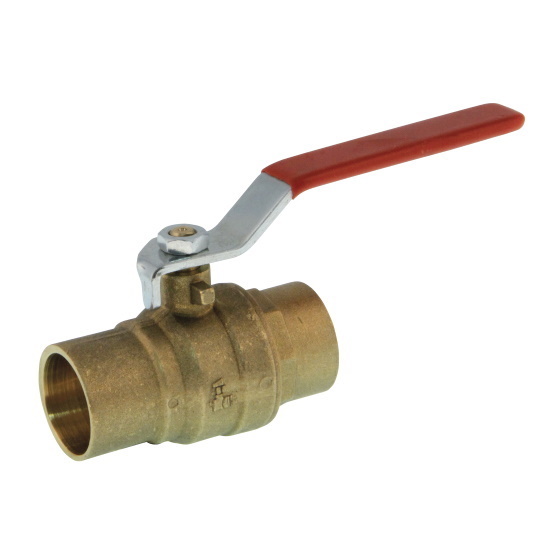

Solder ball valve PN 25 with lever handle

On request

Print datasheet

Items

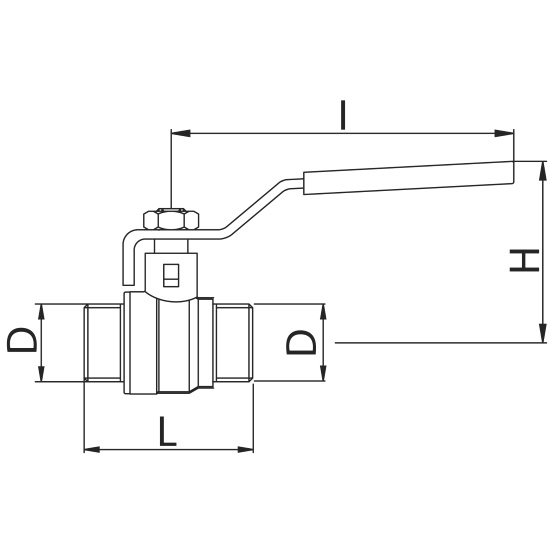

Code Size (D) Smooth Handle H I L Pack
437B00040A 1/2" Iron 51 93 51 10
437B00050A 3/4" Iron 57 93 66 5
437B00060A 1" Iron 62 112 80 5
437000070A 1 1/4" Iron 74 112 99 4
437000080A 1 1/2" Iron 80 143 115 4
437000090A 2" Iron 95 143 139 2
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Standard
Working temperature: 0-110°C
Max working pressure: 25 bar
Body in forged brass
Anti blowing stem
Threads: ISO 228
Valves 425B -424B and 425A -424A in sizes 1 1/4" -1 1/ 2" -2" are the same articles.

Made in accordance with the safety requirements laid down by European Directive 2014/68/EU (PED).

🍪
