Art. A342AA÷A3502AA

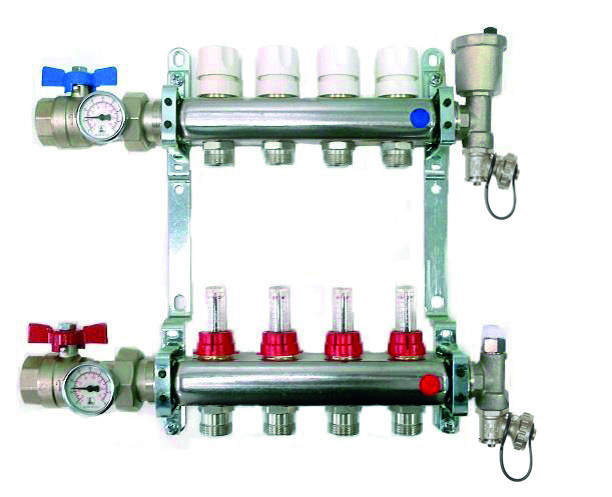

FF stainless steel AISI 304L manifolds with 3/4" male Euroconus outlets, with thermostatic screw and flow meters.
Ball valves with thermometer included ART. 422M, manifold's brackets ART. 271 and terminal parts for manifolds ART. 2980N and 2990N.
Working temperature: 5-70°C
Max working pressure: 6 bar
Flowmeter scale: 0-8 l/min
Print datasheet
Ball valves with thermometer included ART. 422M, manifold's brackets ART. 271 and terminal parts for manifolds ART. 2980N and 2990N.
Working temperature: 5-70°C
Max working pressure: 6 bar
Flowmeter scale: 0-8 l/min
Items

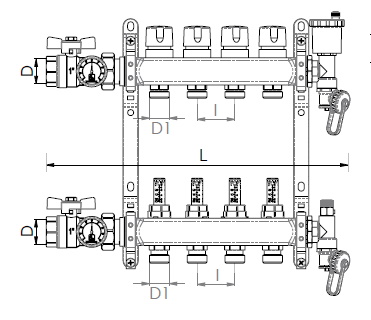

| Code | Size (D) | Smooth | Handle | D1 | I | L | Pack | ||||
| 2 ways | |||||||||||
| A342A6050A | 1" | Plastic | 3/4" | 50 | 291 | 1 | |||||
| 3 ways | |||||||||||
| A343A6050A | 1" | Plastic | 3/4" | 50 | 341 | 1 | |||||
| 4 ways | |||||||||||
| A344A6050A | 1" | Plastic | 3/4" | 50 | 391 | 1 | |||||
| 5 ways | |||||||||||
| A345A6050A | 1" | Plastic | 3/4" | 50 | 441 | 1 | |||||
| 6 ways | |||||||||||
| A346A6050A | 1" | Plastic | 3/4" | 50 | 491 | 1 | |||||
| 7 ways | |||||||||||
| A347A6050A | 1" | Plastic | 3/4" | 50 | 541 | 1 | |||||
| 8 ways | |||||||||||
| A348A6050A | 1" | Plastic | 3/4" | 50 | 591 | 1 | |||||
| 9 ways | |||||||||||
| A349A6050A | 1" | Plastic | 3/4" | 50 | 641 | 1 | |||||
| 10 ways | |||||||||||
| A350A6050A | 1" | Plastic | 3/4" | 50 | 691 | 1 | |||||
| 11 ways | |||||||||||
| A350A6150A | 1" | Plastic | 3/4" | 50 | 741 | 1 | |||||
| 12 ways | |||||||||||
| A350A6250A | 1" | Plastic | 3/4" | 50 | 791 | 1 | |||||
Smooth
- Yellow
- Chrome
- Nickel
- White
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
Available with actuators: art.350-351
Ball valves must be used in totally open-close position
Manifolds will be supplied mounted on the brackets; accessories will be supplied separately, inside the same box
