Art. 645

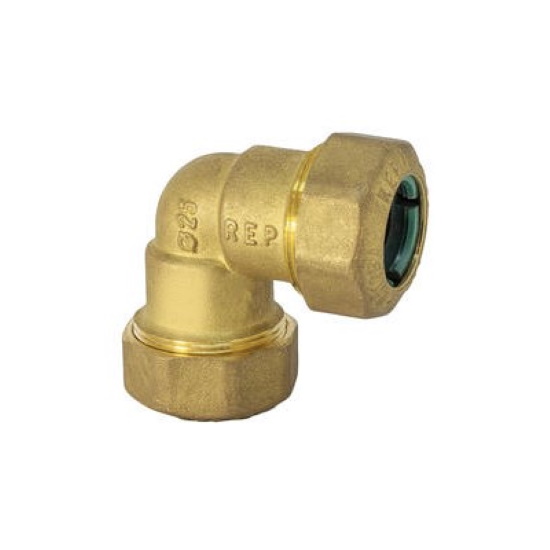

Double curved pipe fitting quick connection

Print datasheet

Items

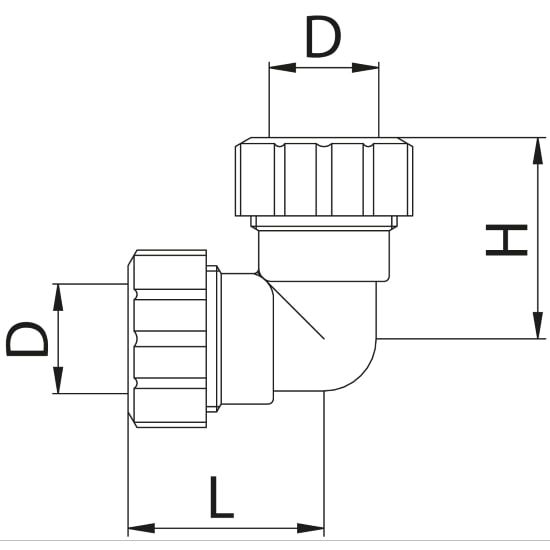

Code Size (D) Smooth H L Pack
6450003000 D.20 38 38 12
6450003500 D.25 45 45 10
6450004200 D.32 52 52 6
6450005000 D.40 62 62 4
6450006000 D.50 72 72 2
6450007300 D.63 92 92 2
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: -15°C -110°C
Max working pressure: 25 bar
Male threads: ISO 7/1
Female threads: ISO 228
