Art. C312÷C3202

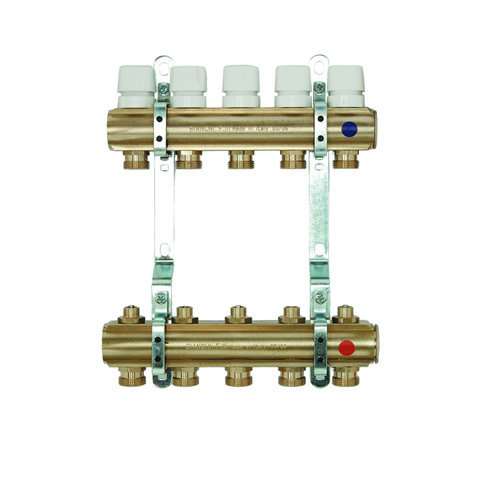

FF brass bar manifolds with 3/4" male Euroconus outlets, with thermostatic valves and lockshields.
Manifold's brackets Art. 271
Working temperature: 5-80°C
Max working pressure: 10 bar
Print datasheet
Manifold's brackets Art. 271
Working temperature: 5-80°C
Max working pressure: 10 bar
Items

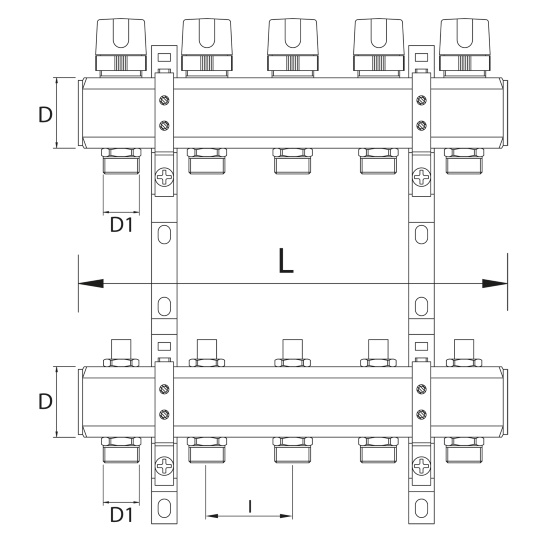

| Code | Size (D) | Smooth | Handle | D1 | I | L | Pack | ||||
| 2 ways | |||||||||||
| C312060500 | 1" | Plastic | 3/4" | 50 | 102 | 1 | |||||
| C312070500 | 1 1/4" | Plastic | 3/4" | 50 | 102 | 1 | |||||
| 3 ways | |||||||||||
| C313060500 | 1" | Plastic | 3/4" | 50 | 152 | 1 | |||||
| C313070500 | 1 1/4" | Plastic | 3/4" | 50 | 152 | 1 | |||||
| 4 ways | |||||||||||
| C314060500 | 1" | Plastic | 3/4" | 50 | 202 | 1 | |||||
| C314070500 | 1 1/4" | Plastic | 3/4" | 50 | 202 | 1 | |||||
| 5 ways | |||||||||||
| C315060500 | 1" | Plastic | 3/4" | 50 | 252 | 1 | |||||
| C315070500 | 1 1/4" | Plastic | 3/4" | 50 | 252 | 1 | |||||
| 6 ways | |||||||||||
| C316060500 | 1" | Plastic | 3/4" | 50 | 302 | 1 | |||||
| C316070500 | 1 1/4" | Plastic | 3/4" | 50 | 302 | 1 | |||||
| 7 ways | |||||||||||
| C317060500 | 1" | Plastic | 3/4" | 50 | 352 | 1 | |||||
| C317070500 | 1 1/4" | Plastic | 3/4" | 50 | 352 | 1 | |||||
| 8 ways | |||||||||||
| C318060500 | 1" | Plastic | 3/4" | 50 | 402 | 1 | |||||
| C318070500 | 1 1/4" | Plastic | 3/4" | 50 | 402 | 1 | |||||
| 9 ways | |||||||||||
| C319060500 | 1" | Plastic | 3/4" | 50 | 452 | 1 | |||||
| C319070500 | 1 1/4" | Plastic | 3/4" | 50 | 452 | 1 | |||||
| 10ways | |||||||||||
| C320060500 | 1" | Plastic | 3/4" | 50 | 502 | 1 | |||||
| C320070500 | 1 1/4" | Plastic | 3/4" | 50 | 502 | 1 | |||||
| 11 ways | |||||||||||
| C320160500 | 1" | Plastic | 3/4" | 50 | 552 | 1 | |||||
| C320170500 | 1 1/4" | Plastic | 3/4" | 50 | 552 | 1 | |||||
| 12 ways | |||||||||||
| C320260500 | 1" | Plastic | 3/4" | 50 | 602 | 1 | |||||
| C320270500 | 1 1/4" | Plastic | 3/4" | 50 | 602 | 1 | |||||
Smooth
- Yellow
- Chrome
- Nickel
- White
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer pipes
Allowed fluids: water (Glycole max percentage: 50%)
Available with actuators: art.350-351
Ball valves must be used in totally open-close position
Manifolds will be supplied mounted on the brackets, accessories will be supplied separately, inside the same box
