Art. 401

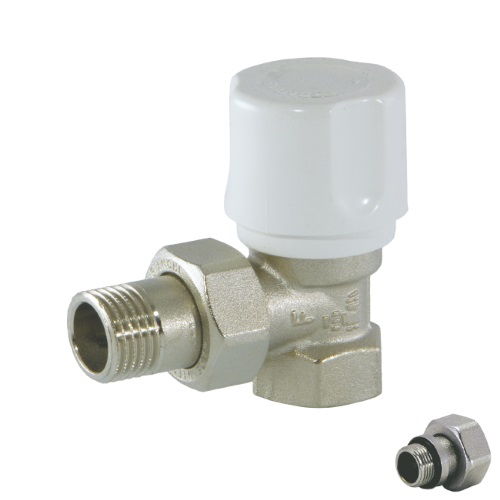

Angle radiator valve for iron pipe

Print datasheet

Items

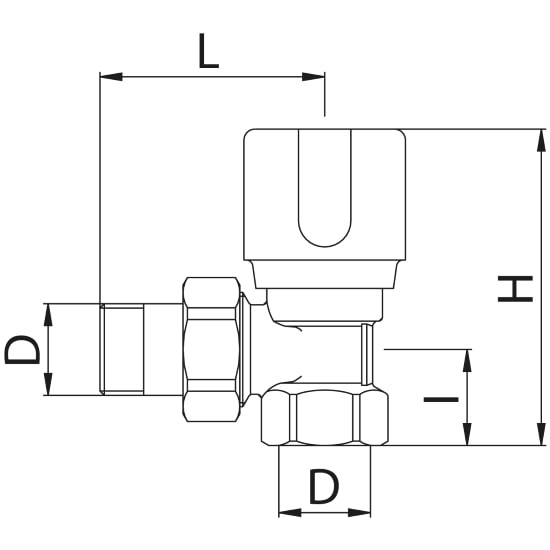

Code Version Size (D) Smooth Handle H I L Pack
4010N00300 3/8" Plastic 70 20 49 10
4010N0030G O-Ring 3/8" Plastic 70 20 49 10
4010N00400 1/2" Plastic 72 22 50 10
4010N0040G O-Ring 1/2" Plastic 72 22 50 10
4010N00500 3/4" Plastic 75 22,5 58 8
4010N0050G O-Ring 3/4" Plastic 75 22,5 58 8
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)

🍪
