Angle radiator valve for copper, multilayer and Pex pipe

  • Angle radiator valve for copper, multilayer and Pex pipe
  • Scheda tecnica - Angle radiator valve for copper, multilayer and Pex pipe
  1. Angle radiator valve for copper, multilayer and Pex pipe
  2. Scheda tecnica - Angle radiator valve for copper, multilayer and Pex pipe
Art. 409

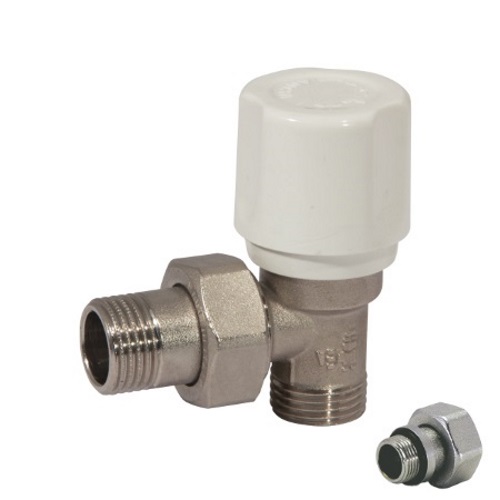

Angle radiator valve for copper, multilayer and Pex pipe

Print datasheet

Items

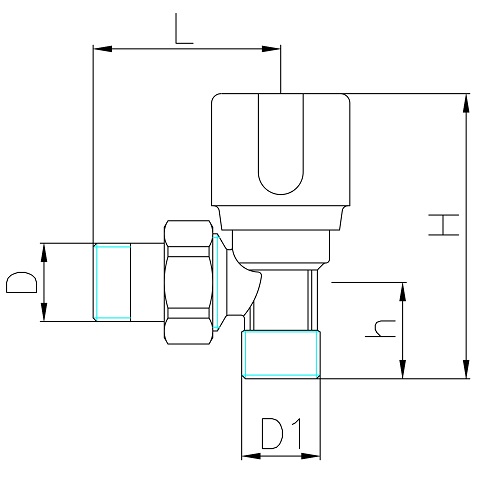

Code Version Size (D) Smooth Handle D1 H I L Pack
4090N00300 3/8" Plastic 1/2" 71,5 21,5 50 10
4090N0030G O-Ring 3/8" Plastic 1/2" 71,5 21,5 50 10
4090N00400 1/2" Plastic 1/2" 71,5 21,5 51 10
4090N0040G O-Ring 1/2" Plastic 1/2" 71,5 21,5 51 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)

🍪
