24x19 straight lockshield-valve for copper pipe

  • 24x19 straight lockshield-valve for copper pipe
  • Scheda tecnica - 24x19 straight lockshield-valve for copper pipe
  1. 24x19 straight lockshield-valve for copper pipe
  2. Scheda tecnica - 24x19 straight lockshield-valve for copper pipe
Art. 414DX

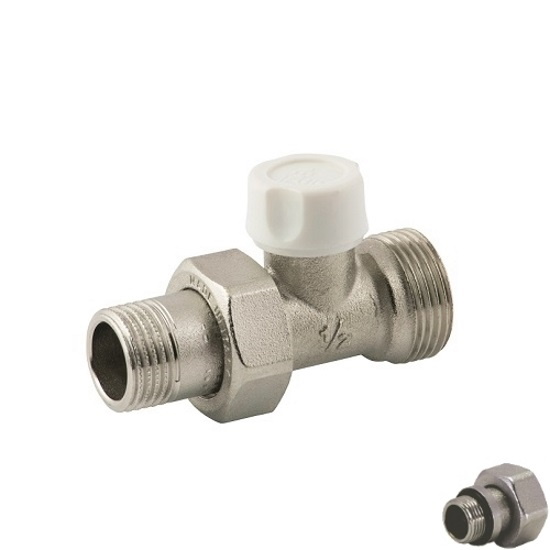

24x19 straight lockshield-valve for copper pipe

Print datasheet

Items

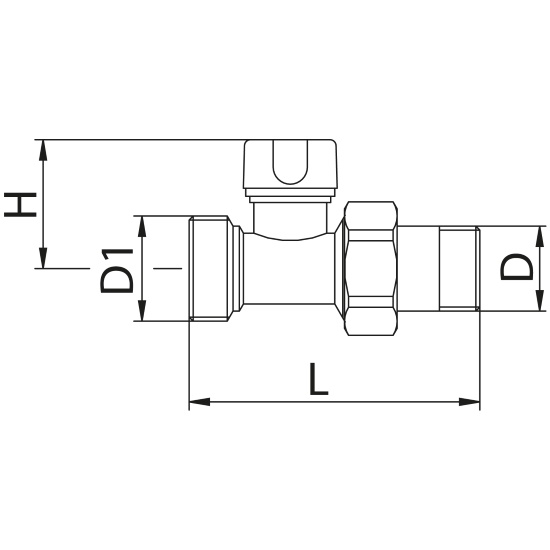

Code Version Size (D) Smooth Handle D1 H L Pack
414DX00400 1/2" Plastic 24X19 30 71 10
414DX0040G O-Ring 1/2" Plastic 24X19 30 71 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)

🍪
