"MINI" MF ball valve with plastic handle

  • MINI MF ball valve with plastic handle
  • Scheda tecnica - MINI MF ball valve with plastic handle
  1. MINI MF ball valve with plastic handle
  2. Scheda tecnica - MINI MF ball valve with plastic handle
Art. 427

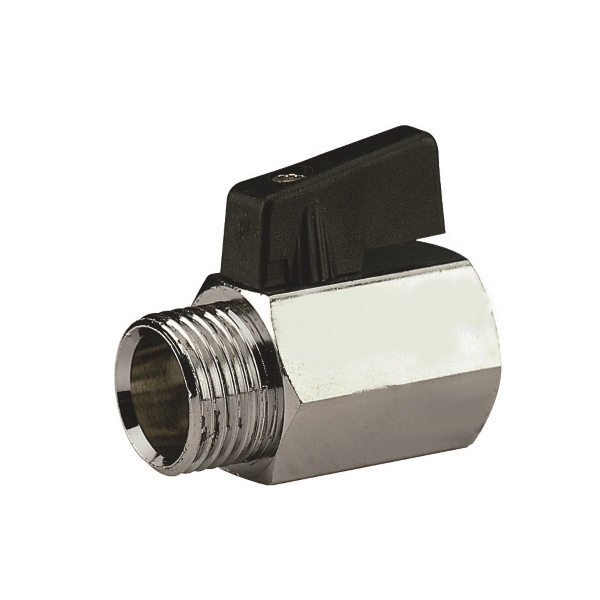

"MINI" MF ball valve with plastic handle

Print datasheet

Items

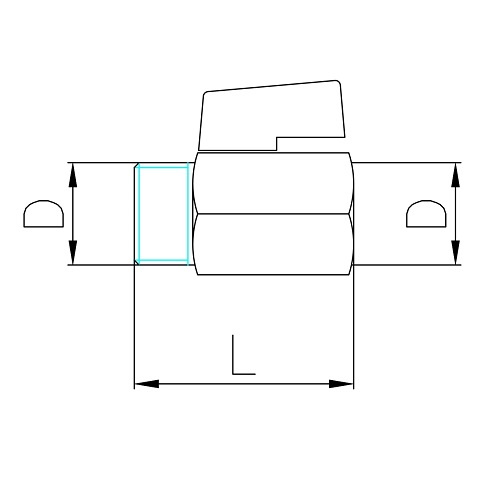

Code Size (D) Smooth Handle L Pack
4270000100 1/8" Plastic 39 30
4270000200 1/4" Plastic 39 30
4270000300 3/8" Plastic 42 30
4270042500 1/2" Plastic 47 25
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0-90°C
Max working pressure: 16bar
Body in bar brass (art. 426 -427)
Body in forged brass (art. 427G -828 -829)
Threads: ISO 228

🍪
