MF ball valve PN 25 with butterfly handle

  • MF ball valve PN 25 with butterfly handle
  • Datasheet - MF ball valve PN 25 with butterfly handle
  1. MF ball valve PN 25 with butterfly handle
  2. Datasheet - MF ball valve PN 25 with butterfly handle
Legend

CW510LCW510L - low lead

CW602NCW602N - DZR

solarsolar

Art. 434B

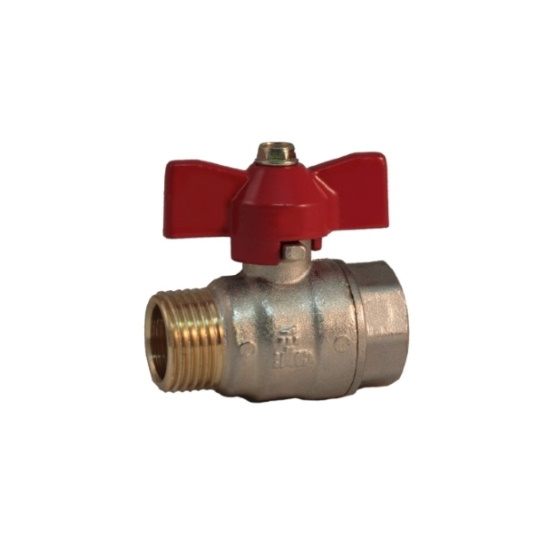

MF ball valve PN 25 with butterfly handle

Print datasheet

Here following some files to download:

Items

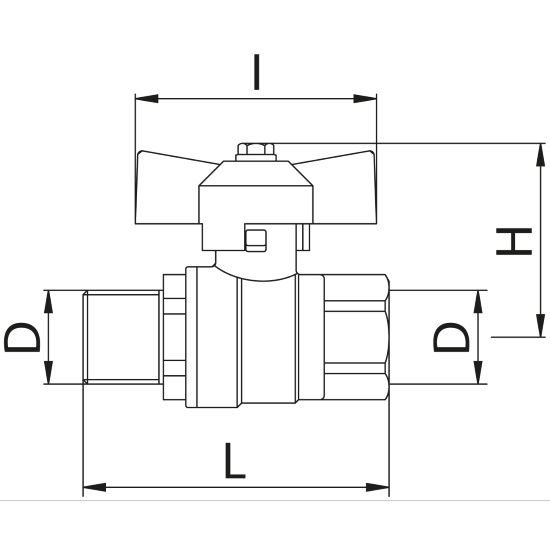

Code Size (D) Smooth Pack H L M
434B00040E 1/2" 20 42 51.0 54.0
434B00040F 1/2" 20 42 51.0 54.0
434B00050E 3/4" 15 45 61.0 54.0
434B00050F 3/4" 15 45 61.0 54.0
434B00060E 1" 8 51 70.0 64.0
434B00060F 1" 8 51 70.0 64.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Flow: Standard
Working temperature: 0-110°C
Max working pressure: 25 bar
Body in forged brass
Anti blowing stem
Threads: ISO 228
Valves 425B - 424B and 425A - 424A in sizes 1 1/4” - 1 1/2” - 2” are the same articles
