MF ball valve PN 25 with butterfly handle
Art. 434B
MF ball valve PN 25 with butterfly handle
Legend
CW510L - low lead
CW602N - DZR
solar
Items

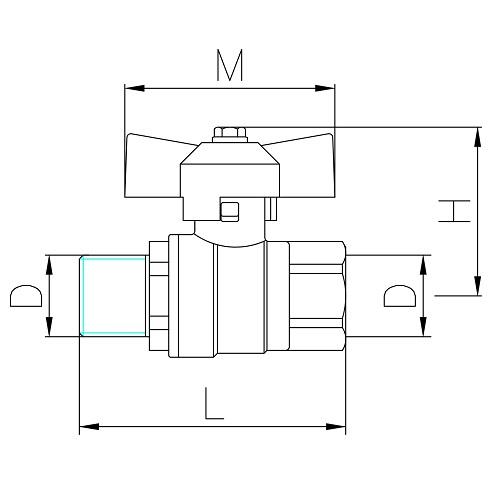

| Code | Size (D) | Smooth | Pack | H | L | M |
| 434B00040E | 1/2" | 20 | 42 | 51.0 | 54.0 | |
| 434B00040F | 1/2" | 20 | 42 | 51.0 | 54.0 | |
| 434B00050E | 3/4" | 15 | 45 | 61.0 | 54.0 | |
| 434B00050F | 3/4" | 15 | 45 | 61.0 | 54.0 | |
| 434B00060E | 1" | 8 | 51 | 70.0 | 64.0 | |
| 434B00060F | 1" | 8 | 51 | 70.0 | 64.0 |
* the last letter of the code indicates the type and color of the handle
Smooth
- Yellow
- Chrome
- Nickel
- White
Aluminum handle
- F Red
- E Blue
- G Yellow
- M Black
Iron handle
- A Red
- D Blue
- B Yellow
- N Black
Flow: Standard
Working temperature: 0-110°C
Max working pressure: 25 bar
Body in forged brass
Anti blowing stem
Threads: ISO 228
Valves 425B - 424B and 425A - 424A in sizes 1 1/4” - 1 1/2” - 2” are the same articles
