Automatic air discharge valve with side connection

  • Automatic air discharge valve with side connection
  • Scheda tecnica - Automatic air discharge valve with side connection
  1. Automatic air discharge valve with side connection
  2. Scheda tecnica - Automatic air discharge valve with side connection
Art. 419B

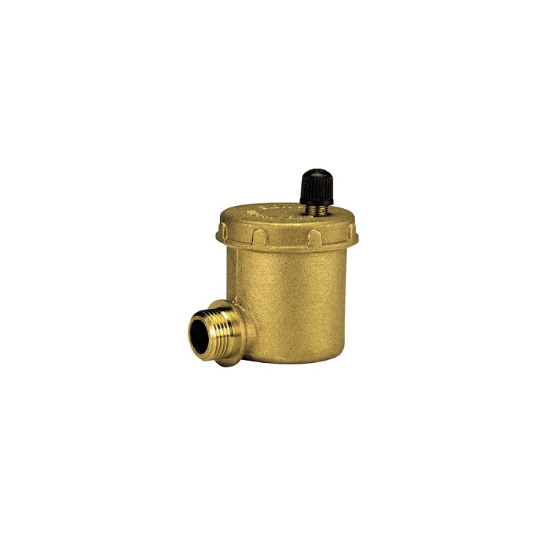

Automatic air discharge valve with side connection

Print datasheet

Items

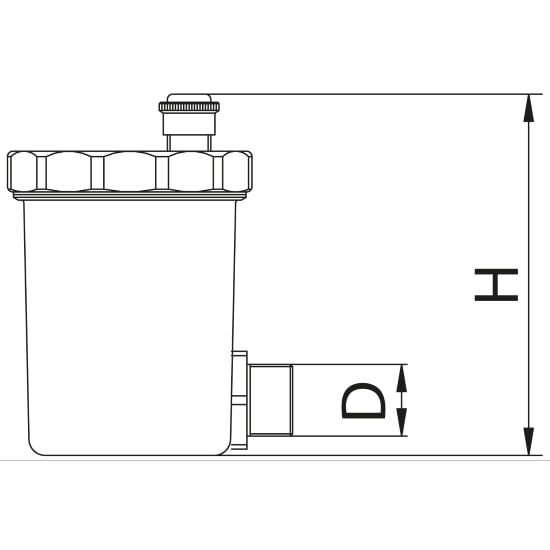

Code Size (D) Smooth H Pack
419B000300 3/8" 61 24
419BN00300 3/8" 61 24
419B000400 1/2" 61 24
419BN00400 1/2" 61 24
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 110°C (solar: 150°C)
Max working pressure : 10 bar
Threads: ISO 228
Float: PP
Allowed fluids: water (Glycole max percentage: 50%)
