Bianchi F.lli

Automatic air discharge valve with side connection

Art. 419B

Automatic air discharge valve with side connection

Valvola a sfiato automatica con attacco laterale Scheda tecnica - Automatic air discharge valve with side connection
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

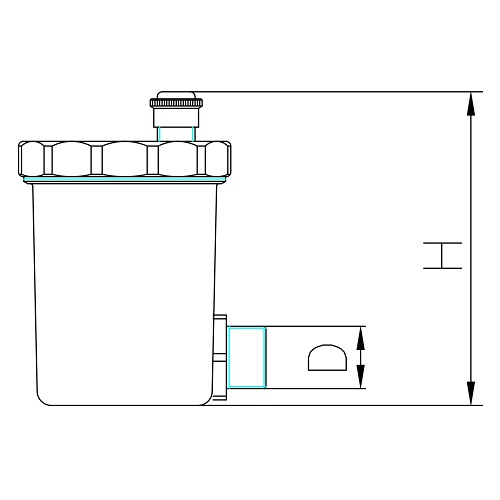

Code Size (D) Smooth Pack H
419B000300 3/8" 24 61
419B000400 1/2" 24 61
419BN00300 3/8" 24 61
419BN00400 1/2" 24 61

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Max working temperature: 110°C (solare/solar: 150°C)
Max working pressure: 10 bar
Threads: ISO 228
Float: PP
Allowed fl uids: water (Glycole max percentage: 50%)
