Art. 7658

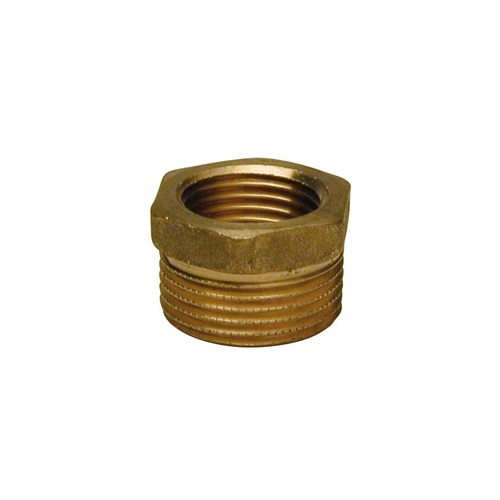

Riduzione esagonale MF
Stampa scheda
Articoli

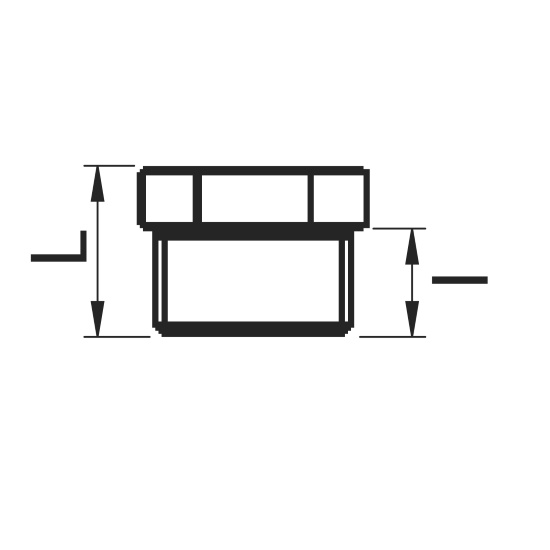

| Codice | Dimensione (D) | Finitura | D1 | I | L | Imballo |
| 076580301C | 3/8" | 1/8" | 10 | 15 | 50 | |
| 0765803020 | 3/8" | 1/4" | 10 | 15 | 50 | |
| 076580302C | 3/8" | 1/4" | 10 | 15 | 50 | |
| 0765804020 | 1/2" | 1/4" | 11,5 | 17 | 50 | |
| 076580402C | 1/2" | 1/4" | 11,5 | 17 | 50 | |
| 0765804030 | 1/2" | 3/8" | 11,5 | 17 | 25 | |
| 076580403C | 1/2" | 3/8" | 11,5 | 17 | 25 | |
| 0765805030 | 3/4" | 3/8" | 13 | 19 | 25 | |
| 076580503C | 3/4" | 3/8" | 13 | 19 | 25 | |
| 0765805040 | 3/4" | 1/2" | 13 | 19 | 25 | |
| 076580504C | 3/4" | 1/2" | 13 | 19 | 25 | |
| 0765806030 | 1" | 3/8" | 14 | 20 | 25 | |
| 076580603C | 1" | 3/8" | 14 | 20 | 25 | |
| 0765806040 | 1" | 1/2" | 14 | 20 | 25 | |
| 076580604C | 1" | 1/2" | 14 | 20 | 25 | |
| 0765806050 | 1" | 3/4" | 14 | 20 | 25 | |
| 076580605C | 1" | 3/4" | 14 | 20 | 25 | |
| 0765807040 | 1 1/4" | 1/2" | 16 | 24 | 10 | |
| 0765807050 | 1 1/4" | 3/4" | 16 | 24 | 25 | |
| 0765807060 | 1 1/4" | 1" | 16 | 24 | 25 | |
| 0765808050 | 1 1/2" | 3/4" | 16 | 24 | 10 | |
| 0765808060 | 1 1/2" | 1" | 16 | 24 | 10 | |
| 0765808070 | 1 1/2" | 1 1/4" | 16 | 25 | 10 | |
| 0765809060 | 2" | 1" | 18 | 27,5 | 5 | |
| 0765809070 | 2" | 1 1/4" | 18 | 27,5 | 10 | |
| 0765809080 | 2" | 1 1/2" | 18 | 27,5 | 10 |
Finitura
- Giallo
- Cromo
- Nichel
- Bianco
Temperatura d'esercizio: 0°C -100°C
Pressione massima d'esercizio : 10 bar
Filetti maschio: ISO 7/1
Filetti femmina: ISO 228
