Three pieces straight fitting MF with EPDM O-ring

  • Three pieces straight fitting MF with EPDM O-ring
  • Scheda tecnica - Three pieces straight fitting MF with EPDM O-ring
  1. Three pieces straight fitting MF with EPDM O-ring
  2. Scheda tecnica - Three pieces straight fitting MF with EPDM O-ring
Art. 416B

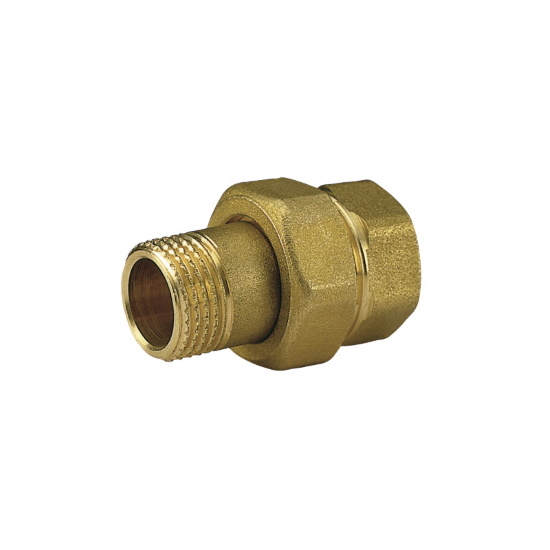

Three pieces straight fitting MF with EPDM O-ring

Print datasheet

Items

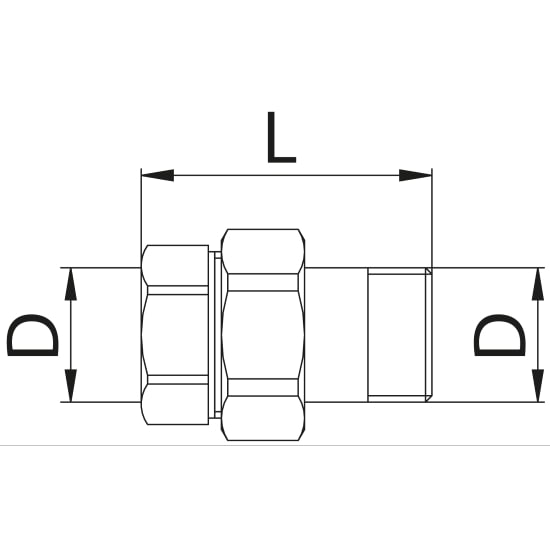

Code Size (D) Smooth L Pack
416B000300 3/8" 43 50
416BC00300 3/8" 43 50
416B000400 1/2" 45 30
416BC00400 1/2" 45 30
416B000500 3/4" 53 15
416BC00500 3/4" 53 15
416B000600 1" 59 10
416BC00600 1" 59 10
416B000700 1 1/4" 66 6
416BC00700 1 1/4" 66 6
416B000800 1 1/2" 76 4
416BC00800 1 1/2" 76 4
416B000900 2" 98 1
416BC00900 2" 98 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0°C -100°C
Max working pressure: 10 bar
Threads: ISO 228
