Art. 415B

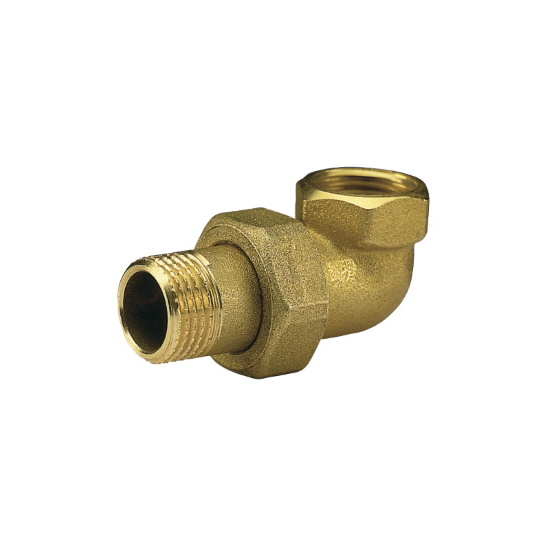

Three pieces elbow fitting MF with EPDM O-ring

Print datasheet

Items

Code Size (D) Smooth H L Pack
415B000300 3/8" 17 45 30
415BC00300 3/8" 17 45 30
415B000400 1/2" 20 51 20
415BC00400 1/2" 20 51 20
415B000500 3/4" 24 60 10
415BC00500 3/4" 24 60 10
415B000600 1" 33 69 5
415BC00600 1" 33 69 5
415B000700 1 1/4" 33 72 4
415B000800 1 1/2" 41 91 2
415B000900 2" 69 118 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0°C -100°C
Max working pressure: 10 bar
Threads: ISO 228
