Terminal part with manual discharge valve and drain valve

  • Terminal part with manual discharge valve and drain valve
  • Scheda tecnica - Terminal part with manual discharge valve and drain valve
  1. Terminal part with manual discharge valve and drain valve
  2. Scheda tecnica - Terminal part with manual discharge valve and drain valve
Art. 299

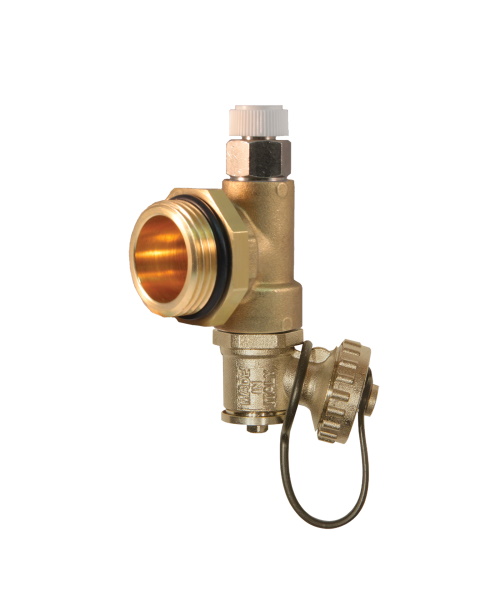

Terminal part for manifold with manual air discharge valve and drain ball valve

Print datasheet

Items

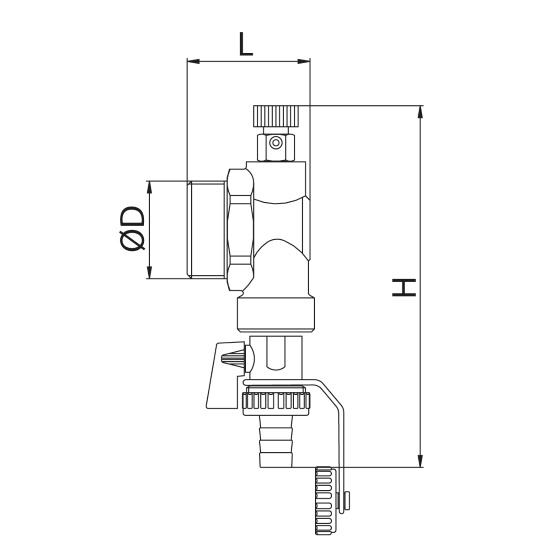

Code Size (D) Smooth H L Pack
2990000500 3/4" 120 42 5
2990000600 1" 120 42 5
2990N00600 1" 120 42 5
2990000700 1 1/4" 120 42 2
2990N00700 1 1/4" 120 42 2
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 80°C
Max working pressure: 10 bar
Threads: ISO 228

🍪
