Swing check valve with plate in brass and metal seat

  • Swing check valve with plate in brass and metal seat
  • Scheda tecnica - Swing check valve with plate in brass and metal seat
  1. Swing check valve with plate in brass and metal seat
  2. Scheda tecnica - Swing check valve with plate in brass and metal seat
Art. 439M

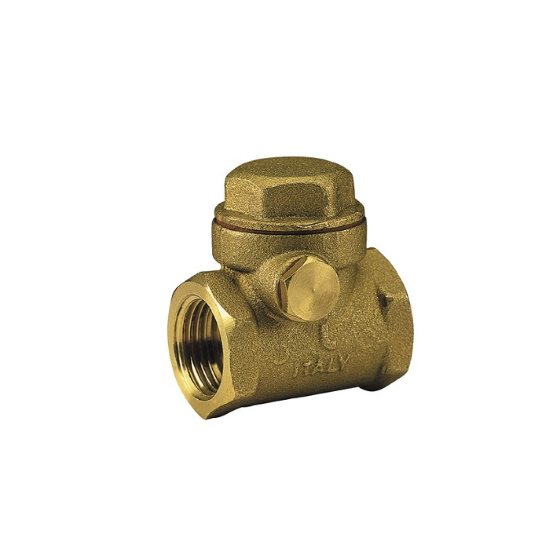

Swing check valve with plate in brass and metal seat

Working temperature: 0-90°C

Print datasheet

Items

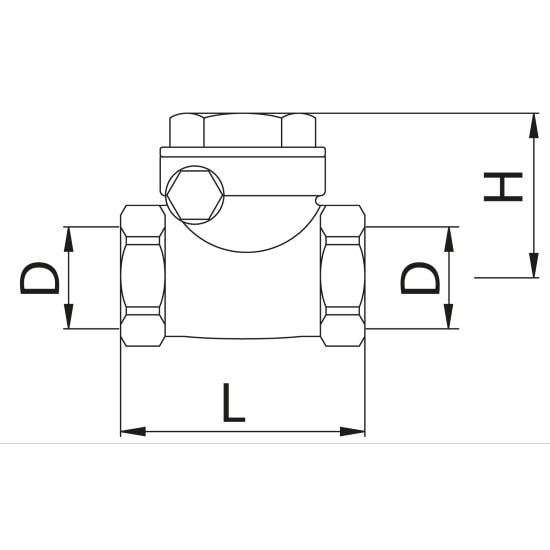

Code Size (D) Smooth H L Pack
439M000400 1/2" 50 44 16
439M000500 3/4" 58 53 12
439M000600 1" 67 63 8
439M000700 1 1/4" 77 72 5
439M000800 1 1/2" 88 82 4
439M000900 2" 101 95 2
4390001000 2 1/2" 130 119 1
4390001100 3" 150 133 1
4390001200 4" 185 168 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0-100°C
Body in brass
Threads: ISO 228
