Art. 403TV

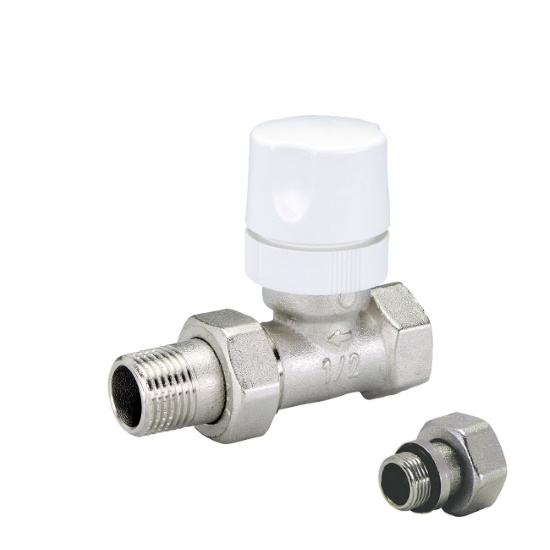

Straight thermostatic radiator valve with micrometric wheelhandle for iron pipe

Print datasheet

Items

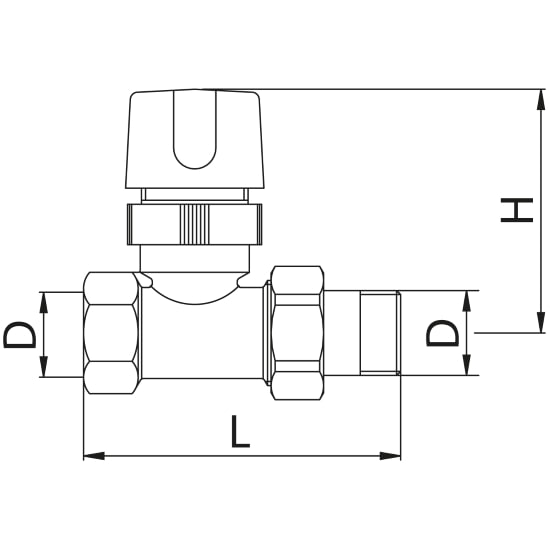

Code Version Size (D) Smooth Handle H L Pack
403TN003V0 3/8" Plastic 63 72 10
403TN003VG O-Ring 3/8" Plastic 63 72 10
403TN004V0 1/2" Plastic 63 83 10
403TN004VG O-Ring 1/2" Plastic 63 83 10
403TN005V0 3/4" Plastic 63 93 5
403TN005VG O-Ring 3/4" Plastic 63 93 5
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Max differential pressure: 1,2 bar
Thermostatic head attachment: 30x1,5
Internal presetting device
Suitable for fittings for copper, PEX or multilayer piping
Available with thermostatic head: art.400 - art.400A
Allowed fluids: water (Glycole max percentage: 50%)
