Straight thermostatic radiator valve copper pipe

  • Straight thermostatic radiator valve copper pipe
  • Scheda tecnica - Straight thermostatic radiator valve copper pipe
  1. Straight thermostatic radiator valve copper pipe
  2. Scheda tecnica - Straight thermostatic radiator valve copper pipe
Art. 411T

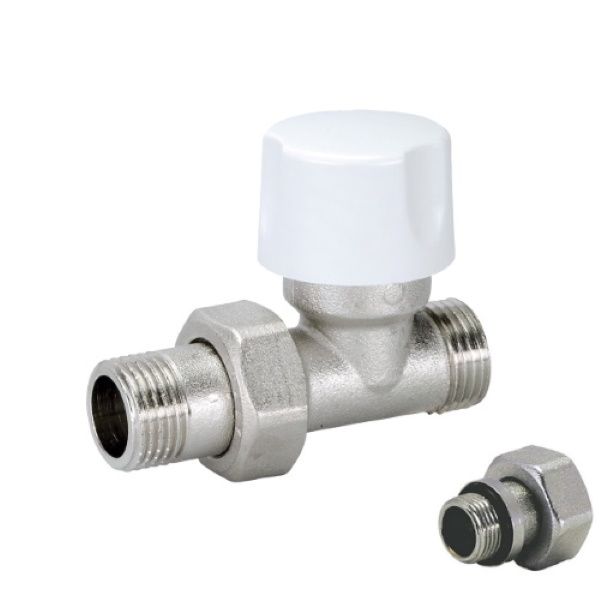

Straight thermostatic radiator valve for copper, multilayer and Pex

Print datasheet

Items

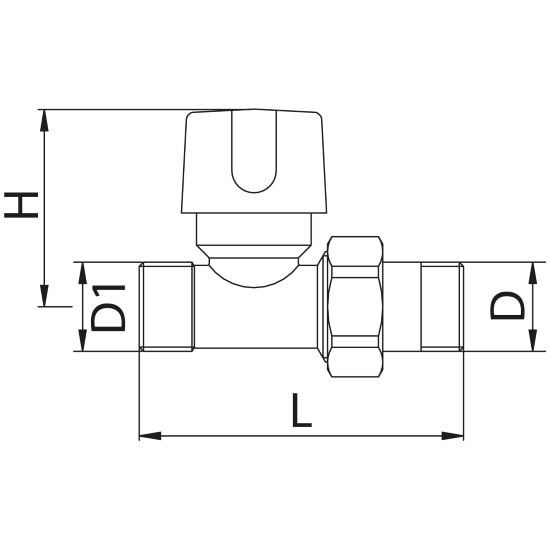

Code Version Size (D) Smooth Handle H L Pack
411TN00300 3/8" Plastic 49 71 10
411TN0030G O-Ring 3/8" Plastic 49 71 10
411TN00400 1/2" Plastic 49 74 10
411TN0040G O-Ring 1/2" Plastic 49 74 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Max differential pressure: 1,2 bar
Thermostatic head attachment: 30x1,5
Internal presetting device
Suitable for fittings for copper, PEX or multilayer piping
Available with thermostatic head: art.400 - art.400A
Allowed fluids: water (Glycole max percentage: 50%)
