Straight EK thermostatic radiator valve copper with handle

  • Straight EK thermostatic radiator valve copper with handle
  • Scheda tecnica - Straight EK thermostatic radiator valve copper with handle
  1. Straight EK thermostatic radiator valve copper with handle
  2. Scheda tecnica - Straight EK thermostatic radiator valve copper with handle
Art. 411TVE

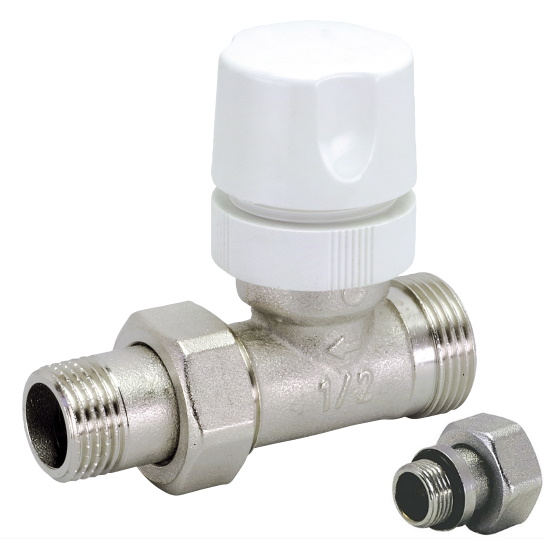

Straight Euroconus thermostatic radiator valve with micrometric wheelhandle for copper, multilayer and Pex

Print datasheet

Items

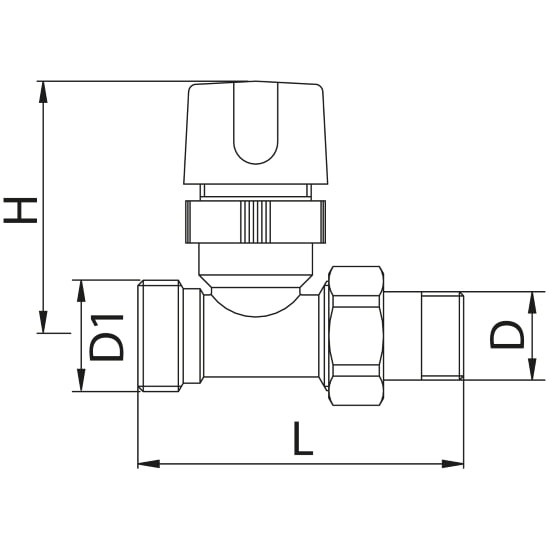

Code Version Size (D) Smooth Handle D1 H L Pack
411TE004V0 1/2" Plastic 3/4" 63 74 10
411TE004VG O-Ring 1/2" Plastic 3/4" 63 74 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Max differential pressure: 1,2 bar
Thermostatic head attachment: 30x1,5
Internal presetting device
Suitable for fittings for copper, PEX or multilayer piping
Available with thermostatic head: art.400 - art.400A
Allowed fluids: water (Glycole max percentage: 50%)
