Art. 7041

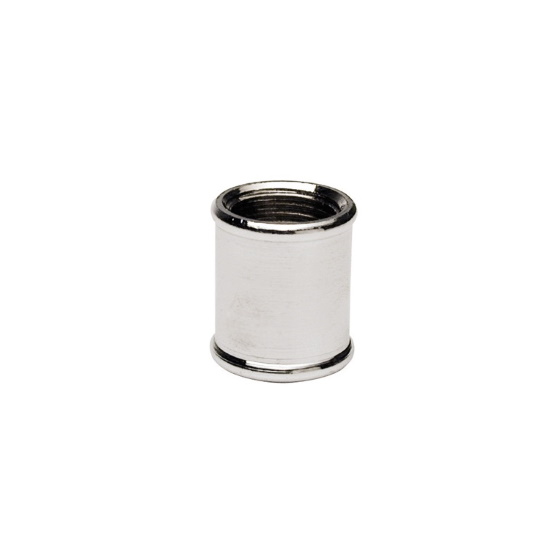

Socket

Print datasheet

Items

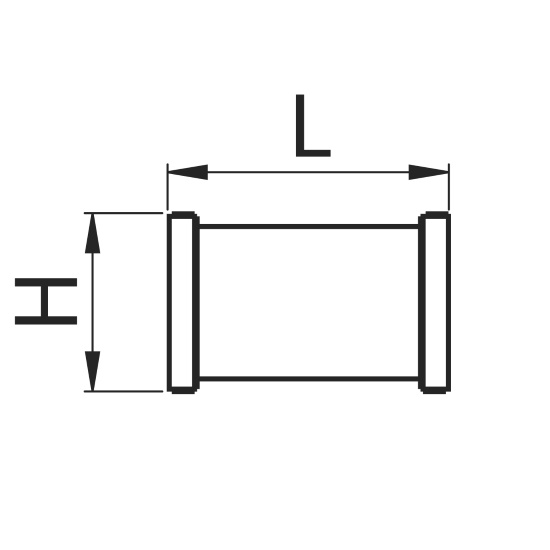

Code Size (D) Smooth H L Pack
0704104000 1/2" 26 29 20
070410400C 1/2" 26 29 20
0704105000 3/4" 32 32 20
070410500C 3/4" 32 32 20
0704106000 1" 40 34 10
070410600C 1" 40 34 10
0704107000 1 1/4" 52 38 10
0704108000 1 1/2" 58 42 10
0704109000 2" 72 58 5
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0°C -100°C
Max working pressure: 10 bar
Male threads: ISO 7/1
Female threads: ISO 228
