Art. 4473B

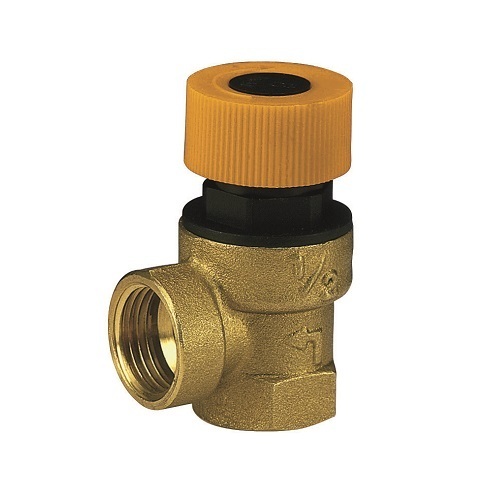

Safety valves for solar systems,female connection

Print datasheet

Items

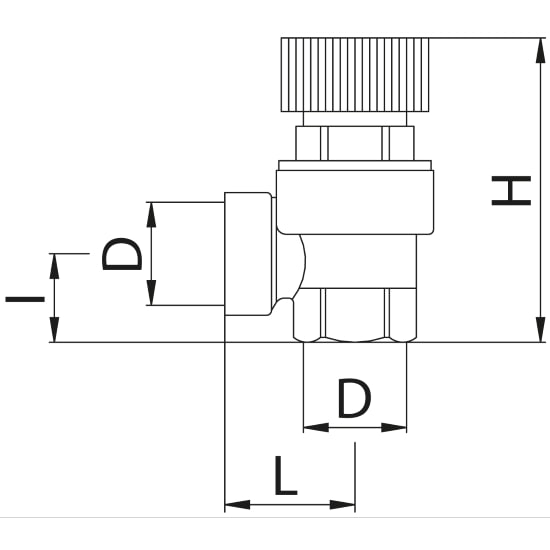

Code Version Size (D) Smooth Handle H I L Pack
4473B00404 4 bar 1/2" Plastic 69 24 35 10
4473B00406 6 bar 1/2" Plastic 69 24 35 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0-110°C (solar 140°C)
Max working pressure: 10 bar
Opening overpressure: 10%
Closing differential: 20%
Tolerance: 10%
Body in forged brass
Threads: ISO 228
Made in accordance with the safety requirements laid down in European Directive 2014/68/EU (PED)

🍪
