Safety valve female connection, with manometer connection

  • Safety valve female connection, with manometer connection
  • Datasheet - Safety valve female connection, with manometer connection
  1. Safety valve female connection, with manometer connection
  2. Datasheet - Safety valve female connection, with manometer connection
Legend

CW510LCW510L - low lead

CW602NCW602N - DZR

solarsolar

Art. 447D

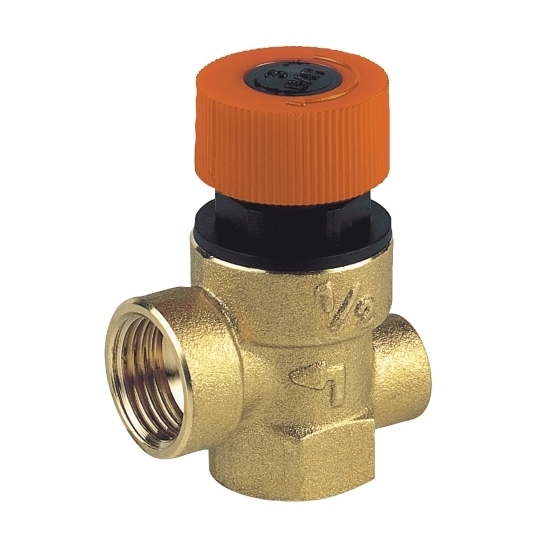

Safety valve female connection, with manometer connection

Print datasheet

Here following some files to download:

Items

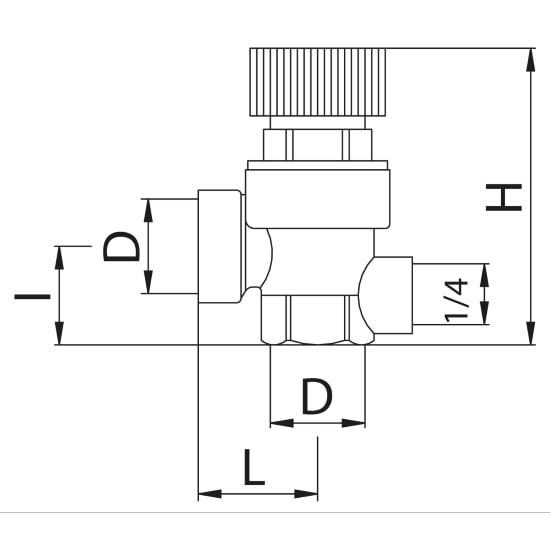

Code Version Size (D) Smooth Pack H L h
447D000401 1,8 Bar 1/2" 10 62 25.0 18.0
447D000402 2,5 Bar 1/2" 10 62 25.0 18.0
447D000403 3 Bar 1/2" 10 62 25.0 18.0
447D000406 6 Bar 1/2" 10 62 25.0 18.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 0-110°C (solare/solar 140°C)
Max working pressure: 10 bar
Opening overpressure: 20%
Closing differential: 20%
Body in forged brass
Threads: ISO 228
The set pressure is stamped in relief on the cap
