Art. 746

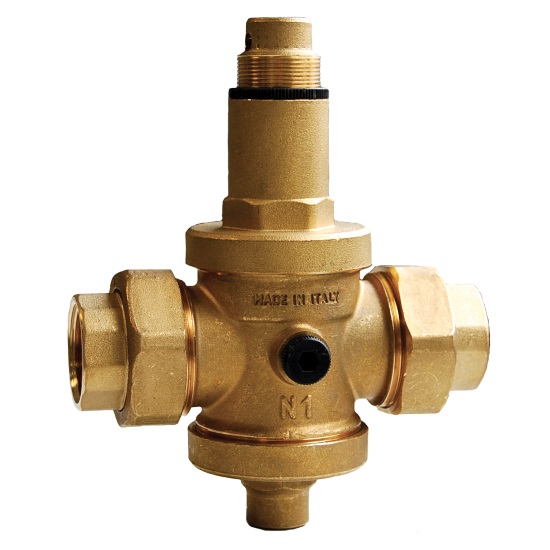

Pressure reducer, inox seal PN25

Print datasheet

Items

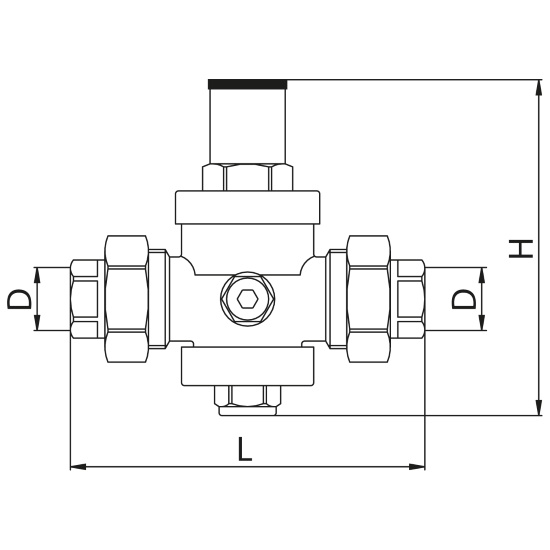

Code Size (D) Smooth H L Pack
7460000400 1/2" 120 112 1
7460000500 3/4" 160 135 1
7460000600 1" 166 140 1
7460000700 1 1/4" 220 170 1
7460000800 1 1/2" 220 170 1
7460000900 2" 250 200 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Pre setting: 3 bar
Outlet settings: 0,5-6 bar (Art.746 1/2" - 3/4" - 1")
Outlet settings: 1-5,5 bar (Art.746 1 1/4" - 1 1/2" - 2" - Art.747)
Working temperature: 0°C (excluding ice) - 80°C
Threads: ISO 228
Manometer connection: 1/4"

For a correct use of the pressure reducer is important to install a filter on the upstream side. Besides it would be better to install shut-off valves upstream and downstream of the pressure reducing valve, to facilitate the maintenance operations.
