Art. 422BC

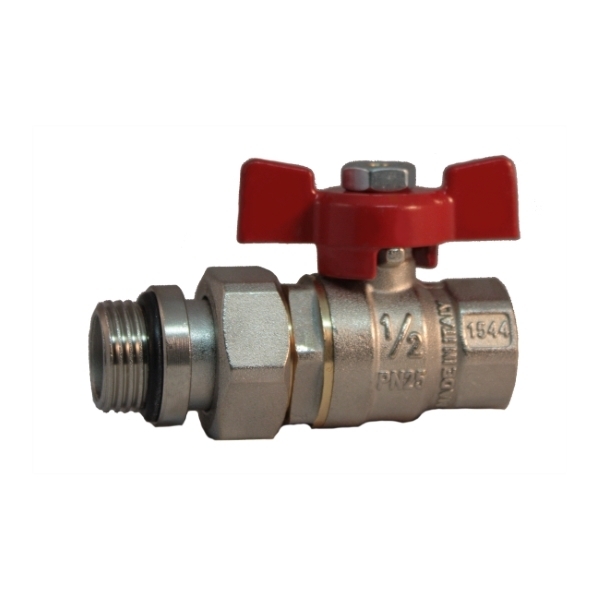

Pipe union and metal ring MF ball valve PN 25 with butterfly handle

Print datasheet

Items

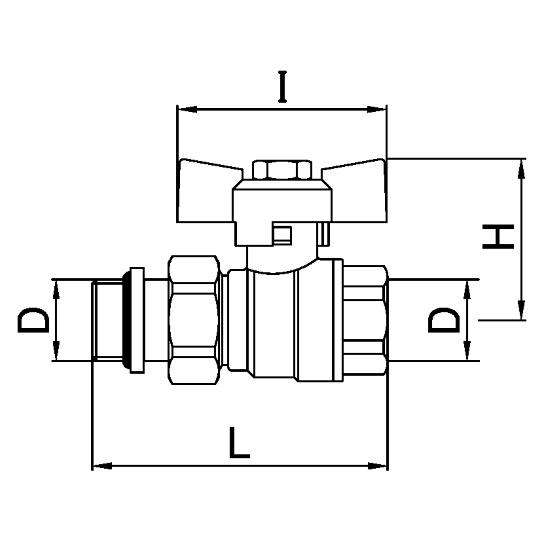

Code Version Size (D) Smooth Handle H I L Pack
422BC004AE O-Ring 1/2" Aluminum 42 54 80 12
422BC004AF O-Ring 1/2" Aluminum 42 54 80 12
422BC005AE O-Ring 3/4" Aluminum 45 54 87 8
422BC005AF O-Ring 3/4" Aluminum 45 54 87 8
422BC006AE O-Ring 1" Aluminum 51 64 100 5
422BC006AF O-Ring 1" Aluminum 51 64 100 5
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0-110°C
Body in forged brass
Threads: ISO 228
