bim
Art. 422B

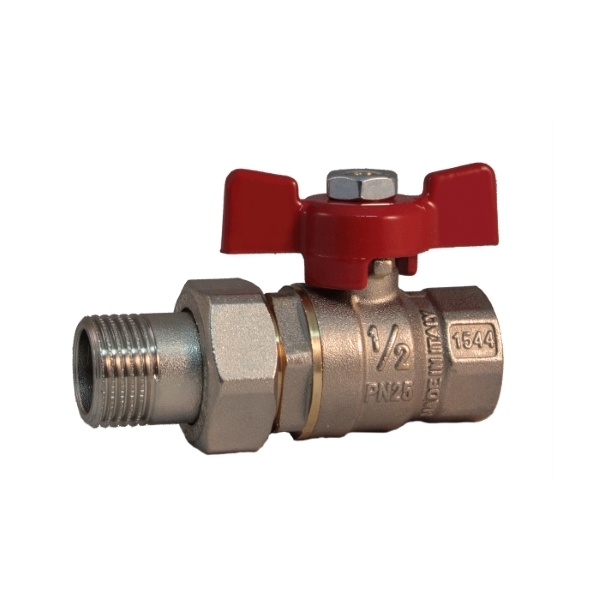

Pipe union MF ball valve PN 25 with butterfly handle

Print datasheet

Items

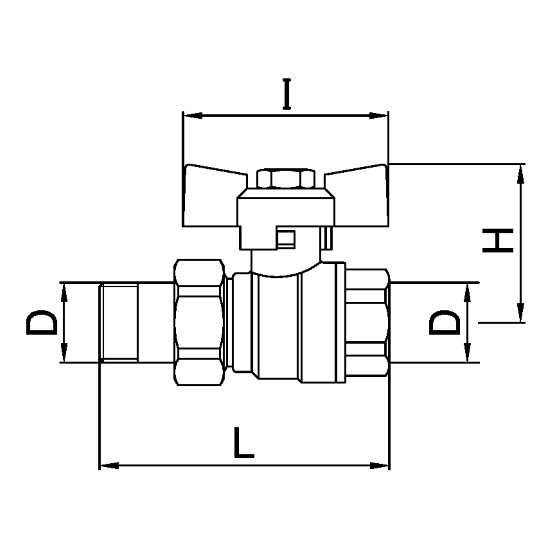

Code Size (D) Smooth Handle H I L Pack
422B00040E 1/2" Aluminum 42 54 80 12
422B00040F 1/2" Aluminum 42 54 80 12
422B00050E 3/4" Aluminum 45 54 87 8
422B00050F 3/4" Aluminum 45 54 87 8
422B00060E 1" Aluminum 51 64 100 5
422B00060F 1" Aluminum 51 64 100 5
422B00070E 1 1/4" Aluminum 54 70 126 4
422B00070F 1 1/4" Aluminum 54 70 126 4
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0-110°C
Body in forged brass
Threads: ISO 228

🍪
