Art. 420

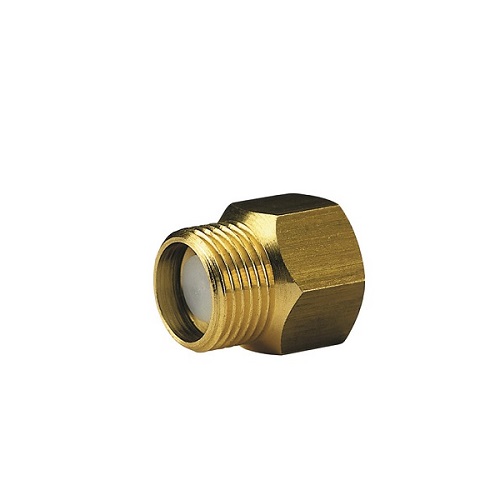

Mini isolated valve

Print datasheet

Here following some files to download:

Items

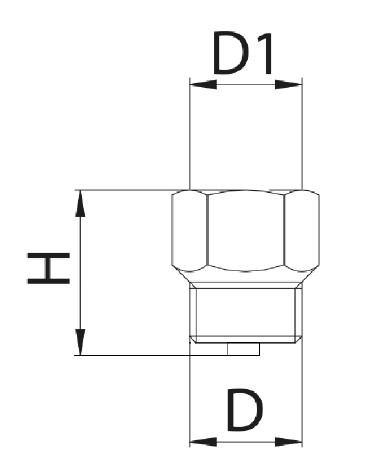

Code Size (D) Smooth Pack D1 H
4200030300 3/8" 50 3/8" 23
4200040300 1/2" 50 3/8" 24
4200040400 1/2" 50 1/2" 25

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 0-110°C (solare/solar 140°C)
Max working pressure: 10 bar
Opening overpressure: 20%
Closing differential: 20%
Body in forged brass
Threads: ISO 228
The set pressure is stamped in relief on the cap
