Art. 383

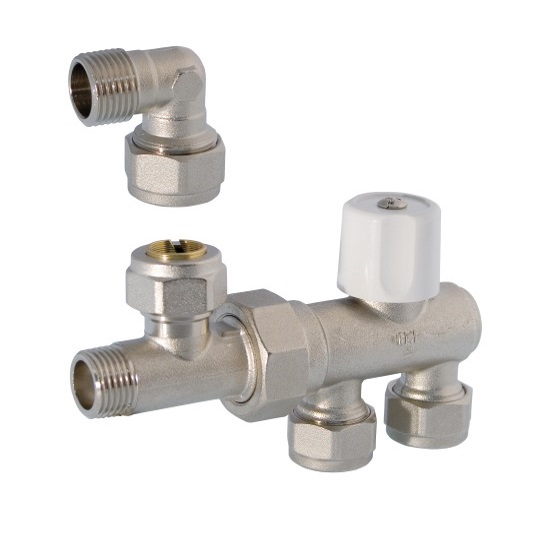

Manual valve for monotube system for panels radiators

Print datasheet

Items

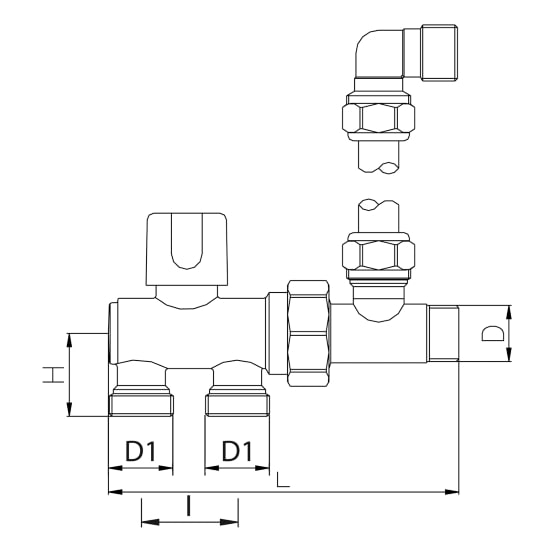

Code Size (D) Smooth Handle D1 H I L Pack
3830000400 1/2" Plastic 24X19 30 37 132 5
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Thermostatic head attachment: M30x1,5
Suitable for fittings for copper, PEX or multilayer piping
Available with thermostatic head: art.400 -art.400A
Allowed fluids: water (Glycole max percentage: 50%)
The mono pipe valves with four outlets are supplied complete with brass supply feeler
