Art. 229

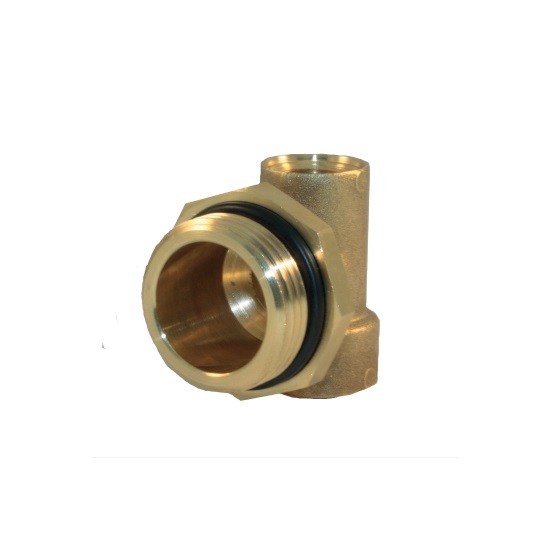

Male plug for manifold with o-ring for fast connection and female outlets for air and water discharge

Print datasheet

Items

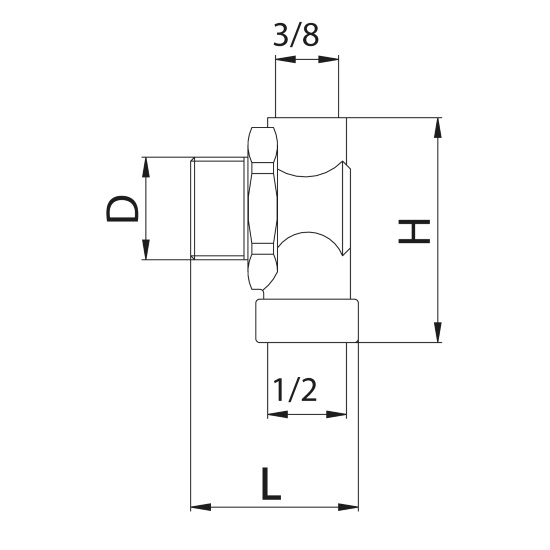

Code Size (D) Smooth H L Pack
2290000500 3/4" 57 40 15
2290C00500 3/4" 57 40 15
2290000600 1" 57 42 15
2290C00600 1" 57 42 15
2290000700 1 1/4" 57 48 15
2290C00700 1 1/4" 57 48 15
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 80°C
Max working pressure: 10 bar
Threads: ISO 228
