Male gas ball valve with hose attachment UNI 7141 standard

  • Male gas ball valve with hose attachment UNI 7141 standard
  • Scheda tecnica - Male gas ball valve with hose attachment UNI 7141 standard
  1. Male gas ball valve with hose attachment UNI 7141 standard
  2. Scheda tecnica - Male gas ball valve with hose attachment UNI 7141 standard
Art. 522

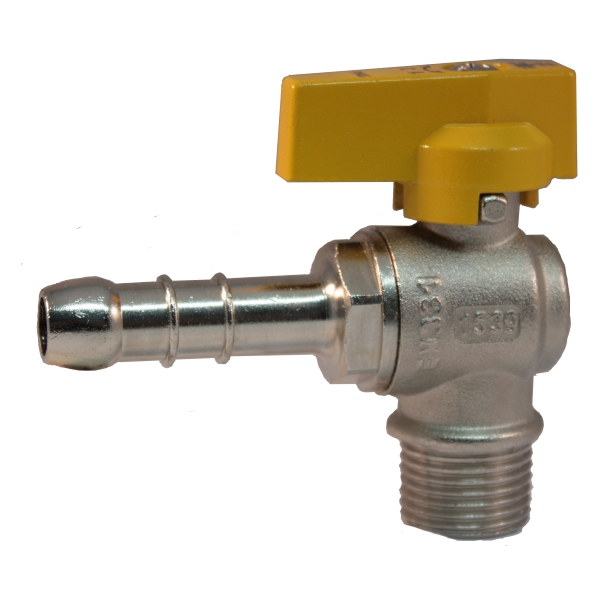

Male connection methane gas ball valve with hose attachment UNI 7141 standard

Print datasheet

Items

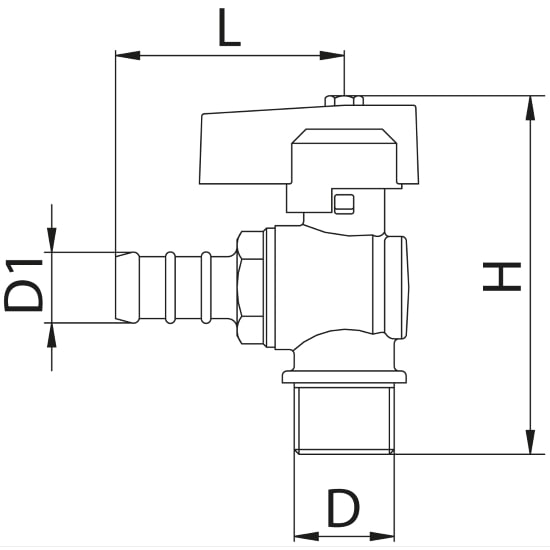

Code Size (D) Smooth Handle D1 H L Pack
522000042G 1/2" Aluminum D.14 73 67 15
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Standard
Working temperature: -20 -+60°C
Max working pressure: MOP5
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
