Art. 7652

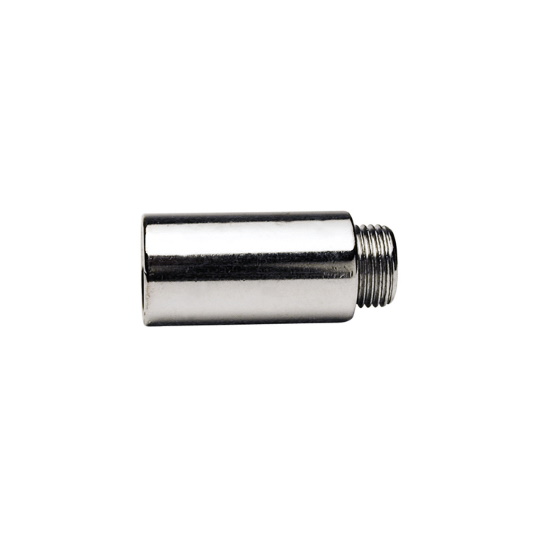

Male female extension

Print datasheet

Items

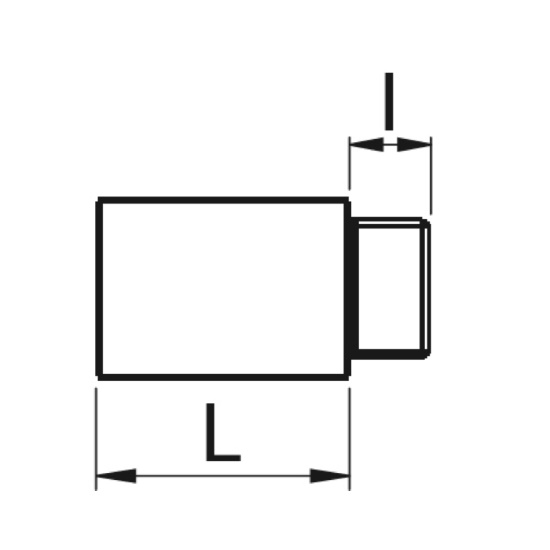

Code Size (D) Smooth I L Pack
076520310C 3/8" 10 10 25
0765203150 3/8" 10 15 25
076520315C 3/8" 10 15 25
0765203200 3/8" 10 20 25
076520320C 3/8" 10 20 25
0765203250 3/8" 10 25 25
076520325C 3/8" 10 25 25
0765203300 3/8" 10 30 25
076520330C 3/8" 10 30 25
0765203400 3/8" 10 40 25
076520340C 3/8" 10 40 25
0765203500 3/8" 10 50 25
076520350C 3/8" 10 50 25
0765204100 1/2" 11 10 50
076520410C 1/2" 11 10 50
0765204150 1/2" 11 15 50
076520415C 1/2" 11 15 50
0765204200 1/2" 11 20 25
076520420C 1/2" 11 20 25
0765204250 1/2" 11 25 25
076520425C 1/2" 11 25 25
0765204300 1/2" 11 30 25
076520430C 1/2" 11 30 25
0765204400 1/2" 11 40 25
076520440C 1/2" 11 40 25
0765204500 1/2" 11 50 10
076520450C 1/2" 11 50 10
0765204600 1/2" 11 60 10
076520460C 1/2" 11 60 10
0765205100 3/4" 12 10 50
076520510C 3/4" 12 10 50
0765205150 3/4" 12 15 25
076520515C 3/4" 12 15 25
0765205200 3/4" 12 20 25
076520520C 3/4" 12 20 25
0765205250 3/4" 12 25 25
076520525C 3/4" 12 25 25
0765205300 3/4" 12 30 25
076520530C 3/4" 12 30 25
0765205400 3/4" 12 40 25
076520540C 3/4" 12 40 25
0765205500 3/4" 12 50 25
076520550C 3/4" 12 50 25
0765206100 1" 15 10 30
076520610C 1" 15 10 30
0765206150 1" 15 15 30
076520615C 1" 15 15 30
0765206200 1" 15 20 30
076520620C 1" 15 20 30
0765206250 1" 15 25 20
076520625C 1" 15 25 20
0765206300 1" 15 30 10
076520630C 1" 15 30 10
0765206400 1" 15 40 10
076520640C 1" 15 40 10
0765206500 1" 15 50 10
076520650C 1" 15 50 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0°C -100°C
Max working pressure: 10 bar
Male threads: ISO 7/1
Female threads: ISO 228
