Art. 640

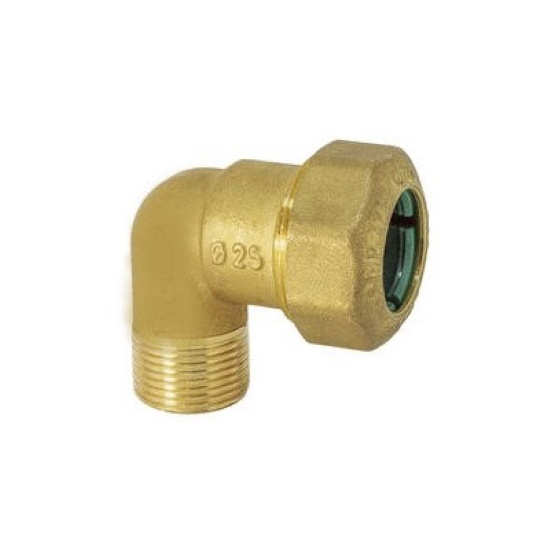

Male curved pipe fitting quick connection

Print datasheet

Items

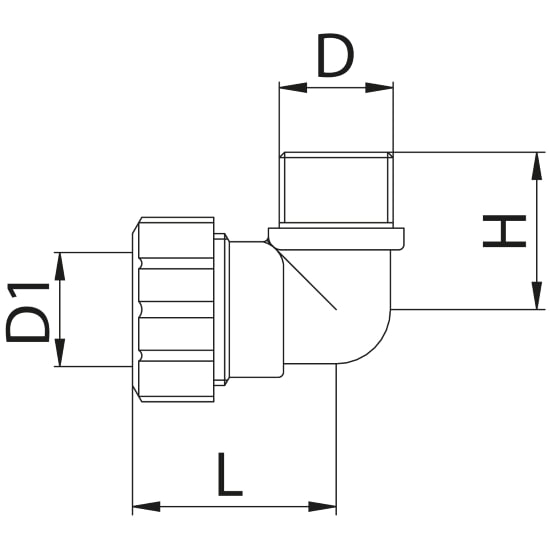

Code Size (D) Smooth D1 H L Pack
6400043000 1/2" D.20 33 37 15
6400053500 3/4" D.25 37 42 12
6400064200 1" D.32 44 50 8
6400075000 1 1/4" D.40 51 60 6
6400086000 1 1/2" D.50 60 68 4
6400097300 2" D.63 71 87 2
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: -15°C -110°C
Max working pressure: 25 bar
Male threads: ISO 7/1
Female threads: ISO 228

🍪
