Male connection liquid gas ball valve with hose attachment

  • Male connection liquid gas ball valve with hose attachment
  • Scheda tecnica - Male connection liquid gas ball valve with hose attachment
  1. Male connection liquid gas ball valve with hose attachment
  2. Scheda tecnica - Male connection liquid gas ball valve with hose attachment
Art. 512L

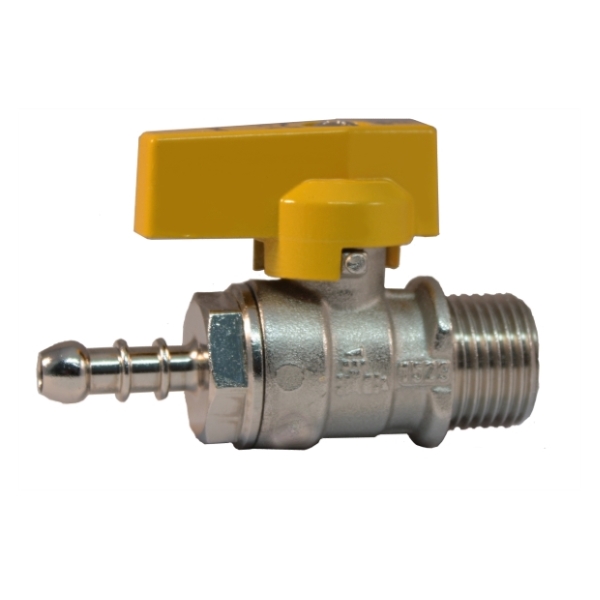

Male connection liquid gas ball valve (LPG) with hose attachment

Print datasheet

Items

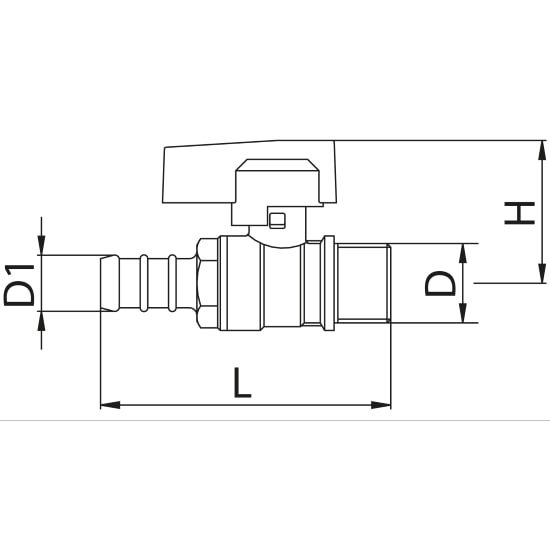

Code Size (D) Smooth Handle D1 H L Pack
512L00030G 3/8" Aluminum 9 38 73 15
512L00040G 1/2" Aluminum 9 38 75 15
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Standard
Working temperature: -20 -+60°C
Max working pressure: MOP5
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
