MM full bore ball valve PN40 with butterfly handle

  • MM full bore ball valve PN40 with butterfly handle
  • Scheda tecnica - MM full bore ball valve PN40 with butterfly handle
  1. MM full bore ball valve PN40 with butterfly handle
  2. Scheda tecnica - MM full bore ball valve PN40 with butterfly handle
Art. 423

MM full bore ball valve PN40 with butterfly handle

Print datasheet

Items

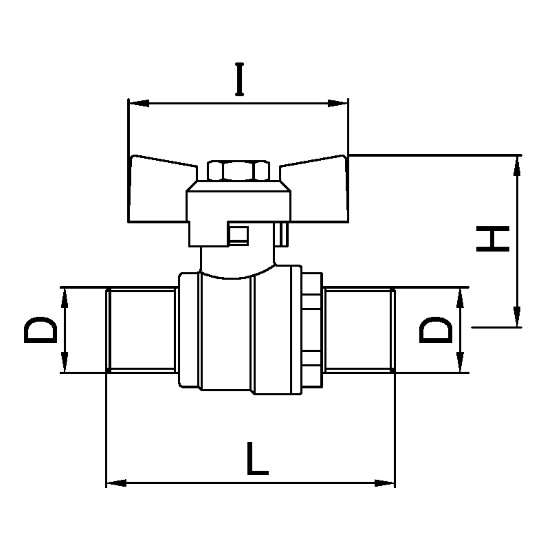

Code Size (D) Smooth Handle H I L Pack
423T00040F 1/2" Aluminum 42 54 58 15
423T00050F 3/4" Aluminum 45 54 70 8
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Full
Working temperature: 0-150°C
Max working pressure: 40 bar
Packing nut
Body in forged brass
Anti blowing stem
Threads: ISO 228

Made in accordance with the safety requirements laid down by European Directive 2014/68/EU (PED).
