Art. 434R

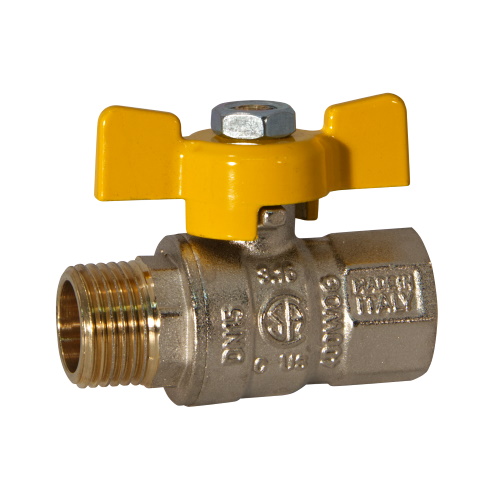

MF gas ball valve with butterfly handle

Print datasheet

Items

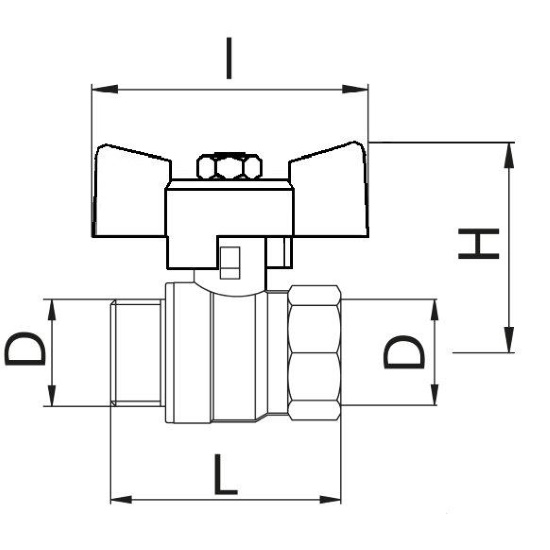

Code Size (D) Smooth Handle H I L Pack
434R00043G 1/2" Aluminum 42 54 54 20
434R00053G 3/4" Aluminum 45 54 66 15
434R00063G 1" Aluminum 51 64 77 8
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Standard
Working temperature: -20 -+60°C
Max working pressure: MOP5
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
