Art. 424

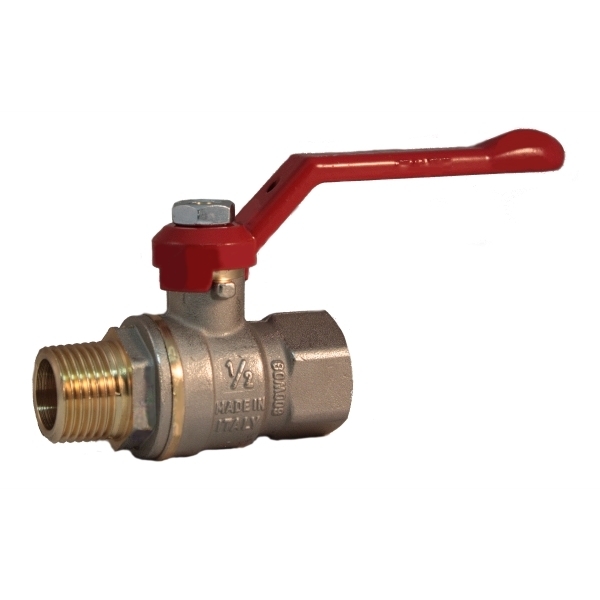

MF full bore ball valve PN 40 with lever handle

Print datasheet

Items

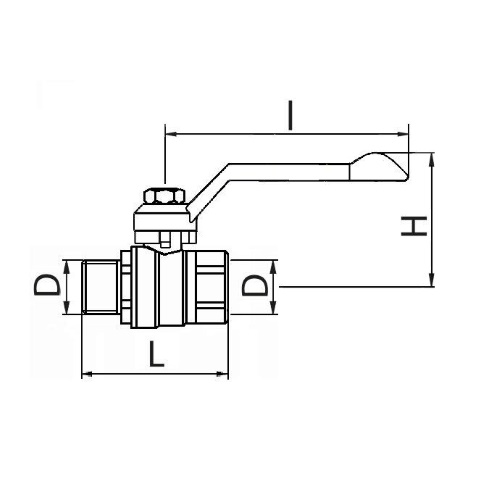

Code Size (D) Smooth Handle H I L Pack
424000020A 1/4" Iron 38 81 53 12
424000030A 3/8" Iron 38 81 53 12
424000040F 1/2" Aluminum 49 84 65 12
424000050F 3/4" Aluminum 55 107 74 8
424000060F 1" Aluminum 60 107 88 6
424000073F 1 1/4" Aluminum 75 138 98 4
424000083F 1 1/2" Aluminum 81 138 114 4
424000093F 2" Aluminum 96 155 134 2
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Full
Working temperature: 0-150°C
Max working pressure: 40 bar
Packing nut
Body in forged brass
Anti blowing stem
Threads: ISO 228

Made in accordance with the safety requirements laid down by European Directive 2014/68/EU (PED).
