Art. 434

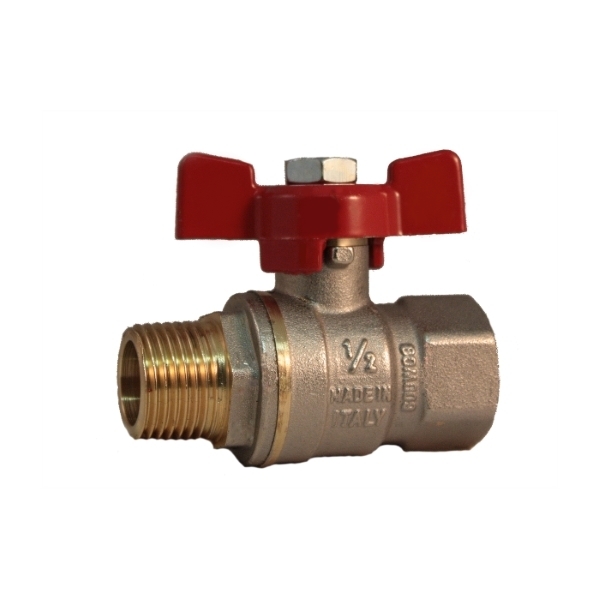

MF full bore ball valve PN 40 with butterfly handle

Print datasheet

Items

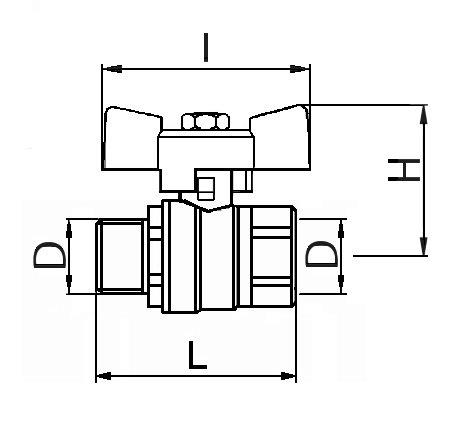

Code Size (D) Smooth Handle H I L Pack
434000020F 1/4" Aluminum 35 43 53 12
434000030F 3/8" Aluminum 35 43 53 12
434000040F 1/2" Aluminum 42 54 65 12
434000050F 3/4" Aluminum 45 54 74 8
434000060F 1" Aluminum 51 64 88 6
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Full
Working temperature: 0-150°C
Max working pressure: 40 bar
Packing nut
Body in forged brass
Anti blowing stem
Threads: ISO 228

Made in accordance with the safety requirements laid down by European Directive 2014/68/EU (PED).
