MF brass ball valve PN25 with pipe union and thermometer

  • MF brass ball valve PN25 with pipe union and thermometer
  • Scheda tecnica - MF brass ball valve PN25 with pipe union and thermometer
  1. MF brass ball valve PN25 with pipe union and thermometer
  2. Scheda tecnica - MF brass ball valve PN25 with pipe union and thermometer
bim
Art. 422M

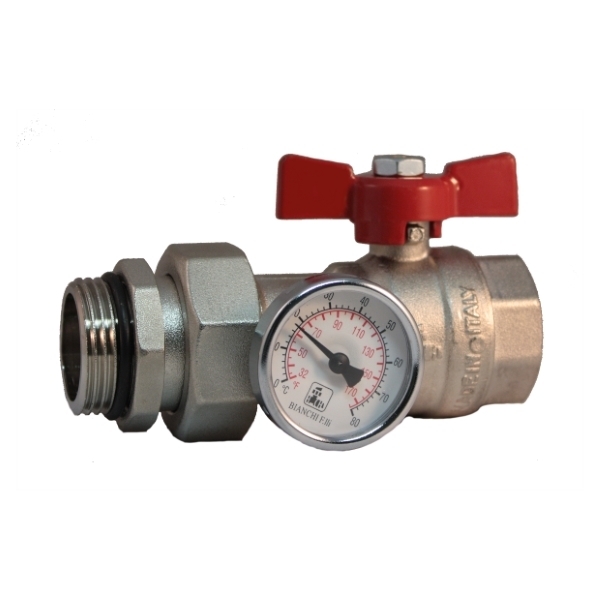

MF brass ball valve PN25 with pipe union, thermometer, range 0 - 80°C, butterfly handle

Print datasheet

Items

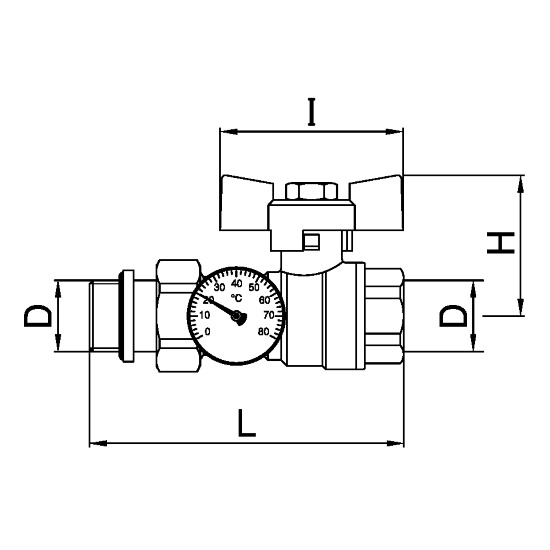

Code Version Size (D) Smooth Handle H I L Pack
422MC0060E O-Ring 1" Aluminum 51 64 118 5
422MC0060F O-Ring 1" Aluminum 51 64 118 5
422MC0070E O-Ring 1 1/4" Aluminum 54 70 164 2
422MC0070F O-Ring 1 1/4" Aluminum 54 70 164 2
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0-110°C
Body in forged brass
Threads: ISO 228
