Art. 431M

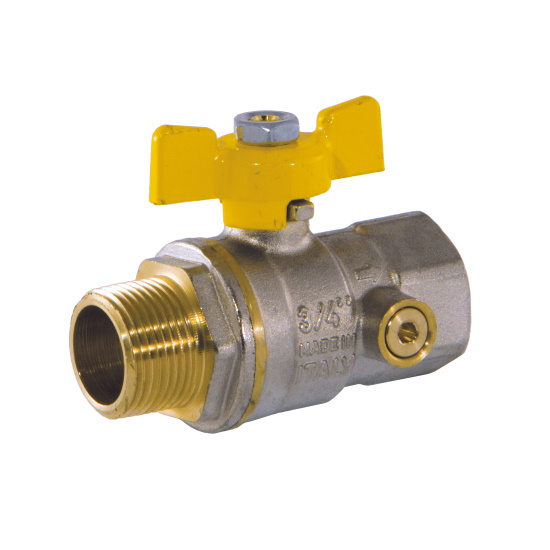

MF ball valve with pressure gage port

Print datasheet

Items

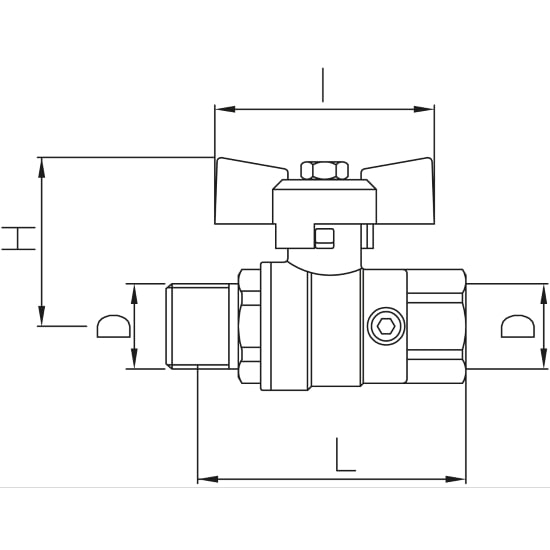

Code Size (D) Smooth Handle H I L Pack
431M00050G 3/4" Aluminum 45 54 72,5 8
431M00060G 1" Aluminum 51 64 84,5 6
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Standard
Working temperature: -20 -+60°C
Max working pressure: MOP5
Pressure connection: 1/8"
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
