Female straight pipe fitting quick connection

  • Female straight pipe fitting quick connection
  • Scheda tecnica - Female straight pipe fitting quick connection
  1. Female straight pipe fitting quick connection
  2. Scheda tecnica - Female straight pipe fitting quick connection
Art. 610

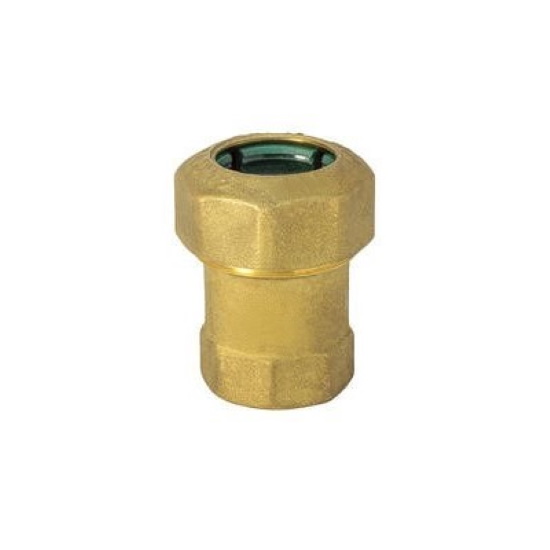

Female straight pipe fitting quick connection

Print datasheet

Items

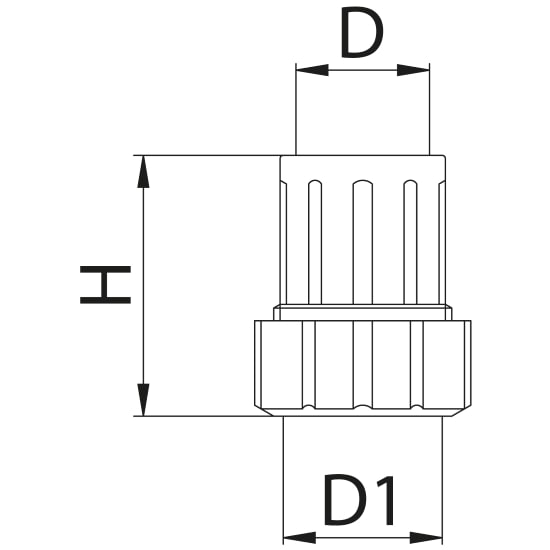

Code Size (D) Smooth D1 H Pack
6100043000 1/2" D.20 40 20
6100053500 3/4" D.25 45 20
6100064200 1" D.32 50 12
6100075000 1 1/4" D.40 58 6
6100086000 1 1/2" D.50 65 4
6100097300 2" D.63 81 2
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: -15°C -110°C
Max working pressure: 25 bar
Male threads: ISO 7/1
Female threads: ISO 228
