Art. 228

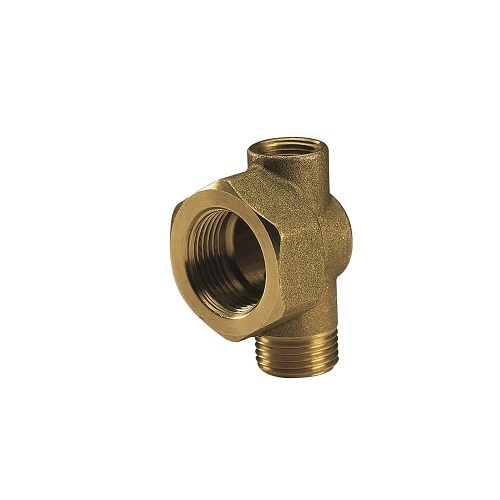

Female plug for manifold with male and female outlets for air and water discharge

Print datasheet

Items

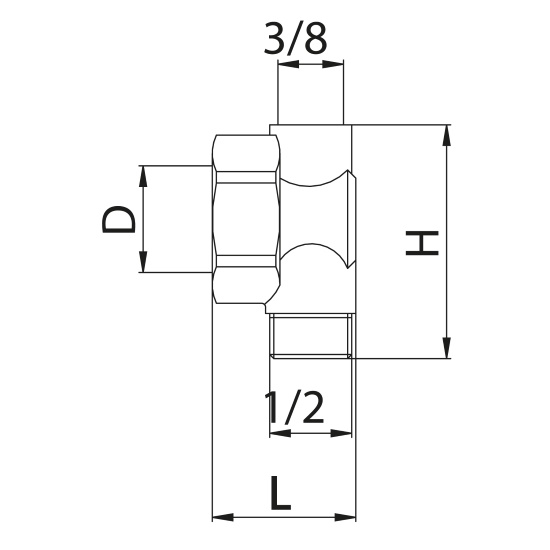

Code Size (D) Smooth H L Pack
2280000500 3/4" 57 35 15
2280C00500 3/4" 57 35 15
2280000600 1" 57 35 15
2280C00600 1" 57 35 15
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 80°C
Max working pressure: 10 bar
Threads: ISO 228
