Art. 228B

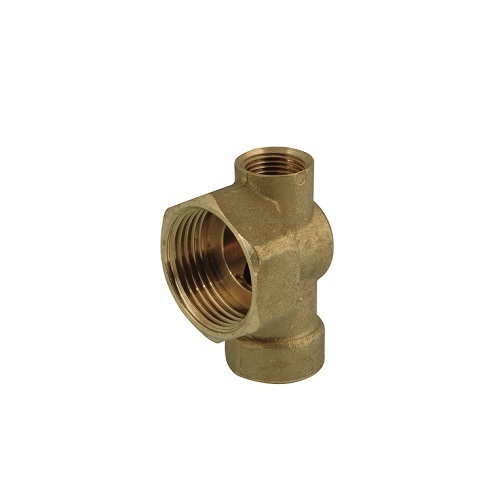

Female plug for manifold with female outlets for air and water discharge

Print datasheet

Items

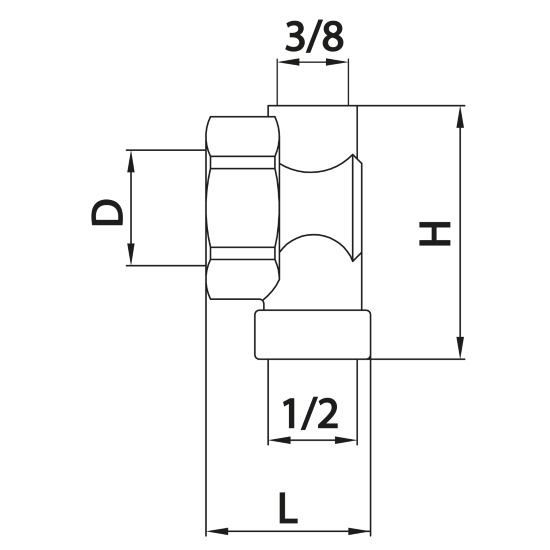

Code Size (D) Smooth H L Pack
228B000600 1" 57 35 15
228BC00600 1" 57 35 15
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 80°C
Max working pressure: 10 bar
Threads: ISO 228
