Female gas ball valve with hose attachment UNI 7141 standard

  • Female gas ball valve with hose attachment UNI 7141 standard
  • Scheda tecnica - Female gas ball valve with hose attachment UNI 7141 standard
  1. Female gas ball valve with hose attachment UNI 7141 standard
  2. Scheda tecnica - Female gas ball valve with hose attachment UNI 7141 standard
Art. 516

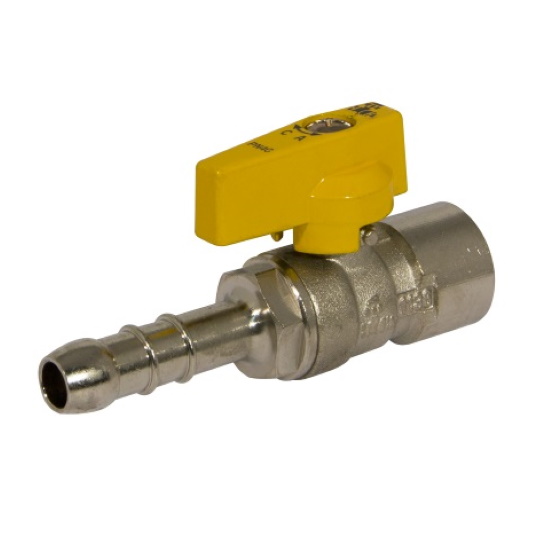

Female connection methane gas ball valve with hose attachment UNI 7141 standard

Print datasheet

Items

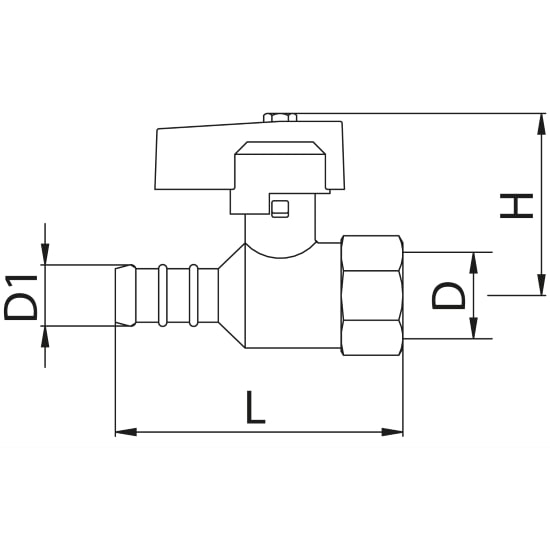

Code Size (D) Smooth Handle D1 H L Pack
516000040G 1/2" Aluminum D.14 38 107 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Standard
Working temperature: -20 -+60°C
Max working pressure: MOP5
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
