Art. 515L

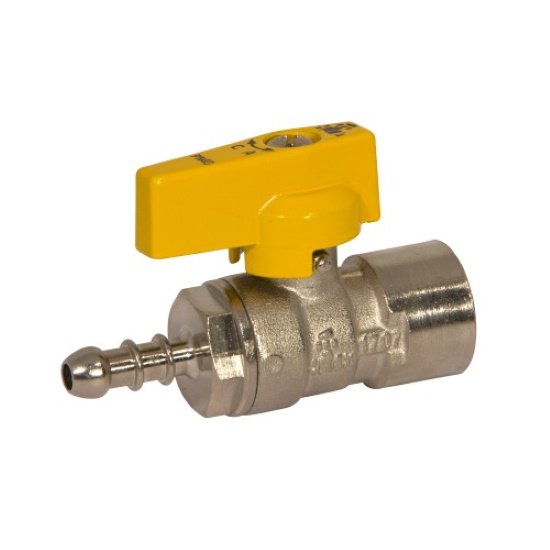

Female connection liquid gas ball valve (LPG) with hose attachment

Print datasheet

Items

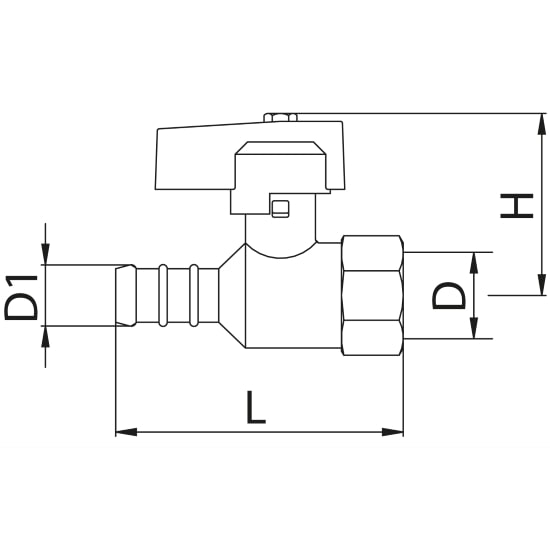

Code Size (D) Smooth Handle D1 H L Pack
515L00030G 3/8" Aluminum 9 38 72 15
515L00040G 1/2" Aluminum 9 38 74 15
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Standard
Working temperature: -20 -+60°C
Max working pressure: MOP5
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
