Art. 525

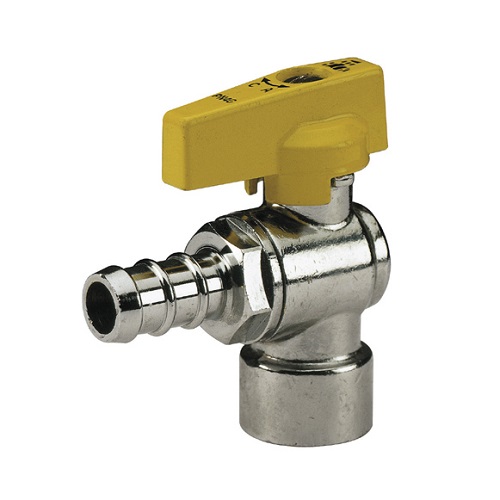

Female connection angle methane gas ball valve with hose attachment

Print datasheet

Items

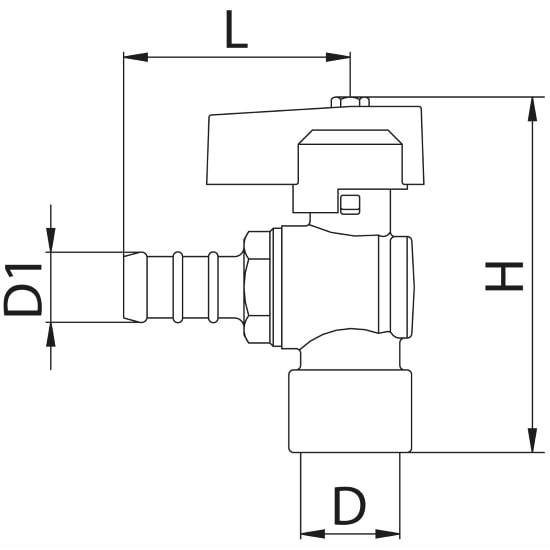

Code Size (D) Smooth Handle D1 H L Pack
525000030G 3/8" Aluminum D.15 68 48 15
525000040G 1/2" Aluminum D.15 72 48 15
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Standard
Working temperature: -20 -+60°C
Max working pressure: MOP5
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
