Female T shaped pipe fitting quick connection

  • Female T shaped pipe fitting quick connection
  • Scheda tecnica - Female T shaped pipe fitting quick connection
  1. Female T shaped pipe fitting quick connection
  2. Scheda tecnica - Female T shaped pipe fitting quick connection
Art. 625

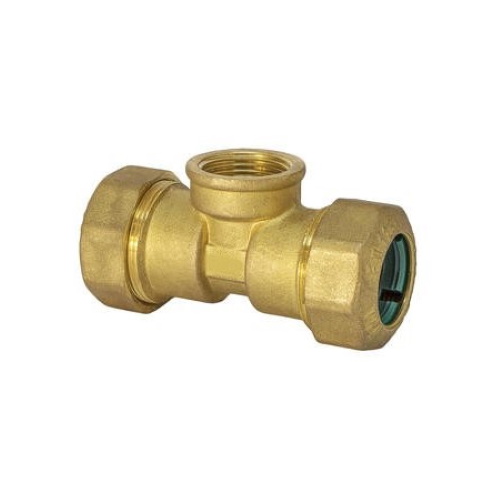

Female T shaped pipe fitting quick connection

Print datasheet

Items

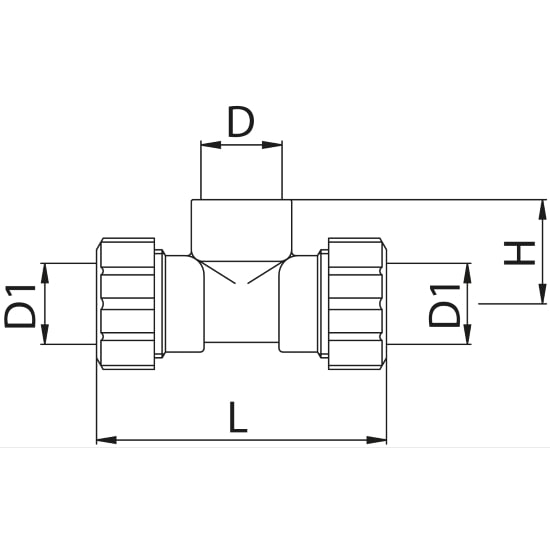

Code Size (D) Smooth D1 H L Pack
6250043000 1/2" D.20 22 77 8
6250053500 3/4" D.25 26 90 6
6250064200 1" D.32 30 105 4
6250075000 1 1/4" D.40 37 125 4
6250086000 1 1/2" D.50 43 143 2
6250097300 2" D.63 51 185 2
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: -15°C -110°C
Max working pressure: 25 bar
Male threads: ISO 7/1
Female threads: ISO 228
