FF solar full bore ball valve PN 40 with butterfly handle

  • FF solar full bore ball valve PN 40 with butterfly handle
  • Scheda tecnica - FF solar full bore ball valve PN 40 with butterfly handle
  1. FF solar full bore ball valve PN 40 with butterfly handle
  2. Scheda tecnica - FF solar full bore ball valve PN 40 with butterfly handle
solar
Solar
Art. 435S

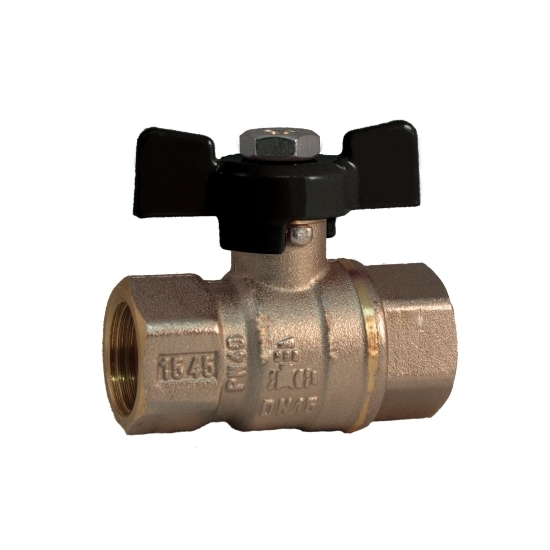

FF solar full bore ball valve PN 40 with butterfly handle

Print datasheet

Items

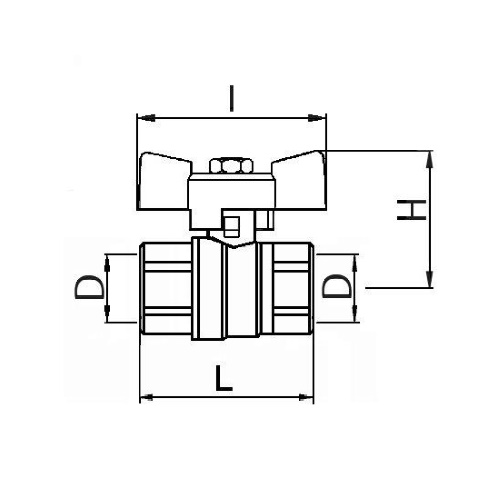

Code Size (D) Smooth Handle H I L Pack
435S00043M 1/2" Aluminum 42 54 61 12
435S00053M 3/4" Aluminum 45 54 68 8
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Full
Working temperature: 0-180°C
Max working pressure: 40 bar
Packing nut
Body in forged brass
Threads: ISO 228

🍪
