FF solar ball valve PN40 with handle

  • FF solar ball valve PN40 with handle
  • Scheda tecnica - FF solar ball valve PN40 with handle
  1. FF solar ball valve PN40 with handle
  2. Scheda tecnica - FF solar ball valve PN40 with handle
solar
Solar
Art. 425S

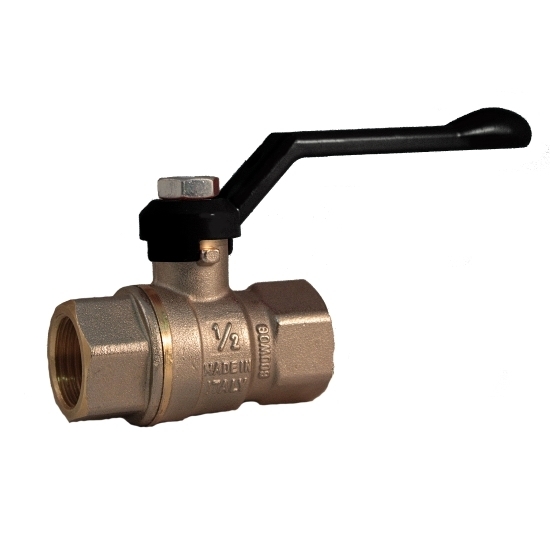

FF solar full bore ball valve PN 40 with lever handle

Print datasheet

Items

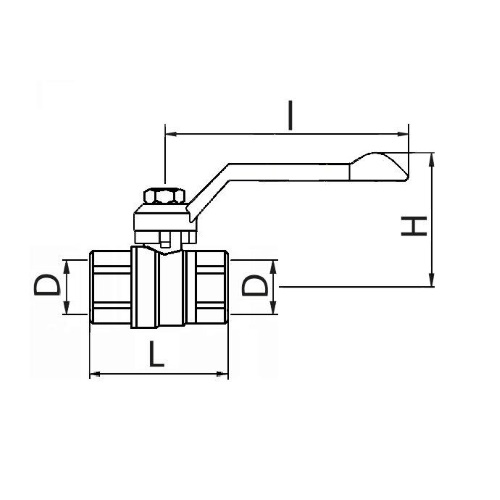

Code Size (D) Smooth Handle H I L Pack
425S00043M 1/2" Aluminum 49 84 60 12
425S00053M 3/4" Aluminum 55 107 68 8
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Full
Working temperature: 0-180°C
Max working pressure: 40 bar
Packing nut
Body in forged brass
Threads: ISO 228
